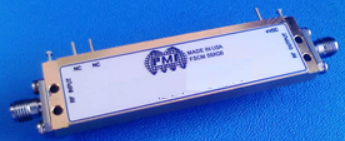

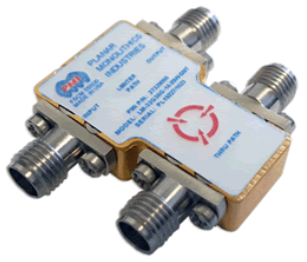

PMI发布系列新产品

1.0 PMI Model No. PEC-150M6G-17LM-SFF, 0.15 to 6.1 GHz, Limiting Amplifier



PMI Model No. PEC-150M6G-17LM-SFF is a Limiting Amplifier that operates over the 0.15 to 6.1 GHz frequency range. It has a maximum output power of +21 dBm and a maximum VSWR of 2.2:1. This model is outfitted with SMA female connectors in a housing measuring 1.91" x 0.70" x 0.36".

  • Frequency Range: 0.15 to 6.1 GHz
  • RF Input Power Range (Limiting): -12 to +16 dBm
  • Max Input Power (Survival): +22 dBm
  • Harmonics:
    • 2nd: -10 dBc Max. - Measured -12.61 dBc
    • 3rd: -8 dBc Max. - Measured -8.87 dBc
    • (Within Limiting Range)
  • Noise Figure:
    • <6 dB Above 1.0 GHz - Measured 4.97 dB
    • <9 dB Below 1.0 GHz - Measured 6.33 dB
  • Output Power: +16 dBm Min., +21 dBm Max.
  • Output Power Flatness: ±2 dBm Max. - Measured ±0.94 dBm
  • VSWR: 2.2:1 Max. - Measured 1.57:1/1.77:1
  • DC Power: +12 V @ 500 mA Max. (No RF Input Signal) - Measured 448 mA

PMI Website Link,

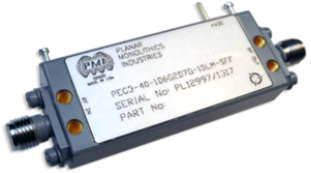

2.0 PMI Model No. PEC3-40-1D6G2D7G-15LM-SFF, 1.6 to 2.7 GHz, Limiting Amplifier



PMI Model No. PEC3-40-1D6G2D7G-15LM-SFF is a 1.6 to 2.7 GHz, Limiting Amplifier. It has a maximum insertion loss of 5.5 dB and a minimum gain of 35 dB. The housing is measured at 1.91" x 0.78" x 0.36" and has SMA female connectors.

  • Frequency Range: 1.6 to 2.7 GHz
  • Noise Figure: 5.5 dB Max. @ +25°C - Measured 4.29 dB
  • Gain: 35 dB Min. - Measured 42.37 dB
  • Gain Flatness: ±2.0 dB Max. (Over any 1.0 GHz)
  • VSWR: 2.0:1 Max. - Measured 1.22:1/1.28:1
  • Saturated Power Output: +15 dBm (±2 dB)
  • Input Power Range:
    • -25 to +5 dBm (Minimum Range)
    • -30 to +5 dBm (Goal)
  • Saturated Power Flatness: ±1.5 dB Max. - Measured ±0.80 dB
  • Harmonic Content: -15 dBm Min., -18 dBm Goal
  • Reverse Isolation: 50 dB Min. - Measured 81.15 dB
  • Pulse Response:
    • Overshoot: 0.4 dB Max.
    • Settling Time: 15 ns Max.
    • Recovery Time: 50 ns Max.
  • Maximum Input (No Damage): +25 dBm CW
  • DC Voltage: +12 to +15 V
  • DC Current: 400 mA Max. - Measured 245 mA

PMI Website Link,



3.0 PMI Model No. PEC-85-0R32R5-15LM-12-SFF, 0.3 to 2.5 GHz, Limiting Amplifier



PMI Model No. PEC-85-0R32R5-15LM-12-SFF is a Limiting Amplifier that operates over the 0.3 to 2.5 GHz frequency range. It has a typical gain of 85 dB and a typical noise figure of 5 dB. This model is outfitted with SMA female connectors in a housing measuring 5.00" x 1.50" x 0.51".

  • Frequency Range: 0.3 to 2.5 GHz
  • Gain: 85 dB Typ.
  • Limited RF Output: +15 dBm, ±2.5 dBm
  • Noise Figure: 5 dB Typ.
  • VSWR In/Out: 2.0:1 Max.
  • Survival Input Power: +15 dBm CW Max.
  • Operating Input Power: +10 dBm CW Max.
  • DC Supply: +12 VDC with Internal Voltage Protection and Reverse Voltage Protection

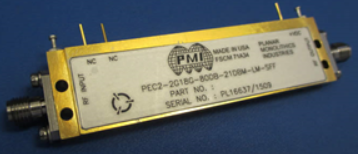

4.0 PMI Model No. PEC2-2G18G-80DB-21DBM-LM-SFF, 2.0 to 18.0 GHz, Limiting Amplifier



PMI Model No. PEC2-2G18G-80DB-21DBM-LM-SFF is a Limiting Amplifier that operates over the 2.0 to 18.0 GHz frequency range. It has a maximum RF input power of +17 dBm CW and a maximum VSWR of 2.0:1. This model is outfitted with SMA female connectors in a housing measuring 2.98" x 0.78" x 0.26".

  • Frequency Range: 2.0 to 18.0 GHz
  • Input Power: -55 to +10 dBm CW Typ.
  • Saturated Output Power: +21 to +25 dBm Nominal
  • Output Power Variation: ±2.0 dBm Max. Over Operating Temperature Range - Measured ±0.48 dBm Max.
  • OP1dB: 4 dBm Below Psat Typ.
  • 2nd Harmonic Rejection: -8 dBc @ Psat
  • 3rd Harmonic Rejection: -9 dBc @ Psat
  • 3rd Order Intercept Point: 35 dBm - Design Goal
  • VSWR Input/Output: 2.0:1 Max. - Measured 1.69:1
  • Maximum RF Input Power: +17 dBm CW
  • DC Voltage Supply: +15 VDC
  • DC Current Draw: 700 mA Max. - Measured 472 mA

PMI Website Link,



5.0 PMI Model No. PEC2-50M2500M-2DBM-LM-SFF, 50 MHz to 2.5 GHz, Limiting Amplifier



PMI Model No. PEC2-50M2500M-2DBM-LM-SFF is a 50 MHz to 2.5 GHz, Limiting Amplifier. It has a maximum typical noise figure of 10 dB and a maximum VSWR of 2.0:1. It has SMA female connectors in a housing measured at 2.98" x 0.78" x 0.10".

  • Frequency Range: 50 MHz to 2.5 GHz
  • Input Power: -50 to +30 dBm CW
  • Output Power: +2.0 dBm Nominal ± 3.5 dB (Over Input Power Range)
  • Noise Figure: 10 dB Typ. Above 500 MHz
  • Spurious Rejection: -60 dBc Typ.
  • Harmonic Rejection: -10 dBc Typ.
  • VSWR In/Out: 2.0:1 Max.
  • DC Voltage Supply: +12 to +15 VDC
  • DC Current Draw: 460 mA Nominal

PMI Website Link,



6.0 PMI Model No. PEC3-40-2G6G-15LM-SFF-HS, 1.85 to 6.25 GHz, Limiting Amplifier



PMI Model No. PEC3-40-2G6G-15LM-SFF-HS is a Limiting Amplifier that operates over the 1.85 to 6.25 GHz frequency range. It has a maximum noise figure of 6.0 dB and a minimum gain of 35 dB. This model is outfitted with SMA female connectors in a housing measuring 1.91" x 0.78" x 0.36".

  • Frequency Range: 1.85 to 6.25 GHz
  • Noise Figure:
    • 5.5 dB Max. @ +25°C - Measured 4.09 dB
    • 6.0 dB Max. @ +85°C - Measured 4.40 dB
  • Gain: 35 dB Min. - Measured 41.17 dB
  • Gain Variation Over Temperature: ±4.0 dB Max. (-55°C to +85°C) - Measured ±0.2 dB
  • Gain Flatness (At Any Operating Temperature):
    • ±2.5 dB Max. (Full Range) - Measured ±0.35 dB
    • ±2.0 dB Max. (Over Any 500 MHz) - Measured ±0.1 dB
  • VSWR In/Out: 2.0:1 Max. - Measured 1.58:1
  • Saturated Power Output: +15 dBm Min. - Measured +17.17 dBm
  • Input Power Range: -15 to +17 dBm
  • Saturated Power Flatness:
    • ±1.5 dB Max. (At Any Operating Temperature) - Measured ±0.75 dB
    • ±0.5 dB Max. (Over Any 500 MHz) - Measured ±0.25 dB
  • Saturated Power Variation Over Temperature: ±1.25 dB Max. (At Any Single Frequency) - Measured ±0.815 dB
  • Harmonic Content: -15 dBc Min.
  • Reverse Isolation: 50 dB Min. - Measured 64.37 dB
  • Pulse Response:
    • Overshoot: 0.2 dB Max.
    • Settling Time: 10 ns Max.
    • Recovery Time: 50 ns Max. - Measured 10 ns
  • Maximum Input (No Damage):
    • +20 dBm CW Max.
    • +30 dBm, 0.005 Duty Cycle, 1 usec
  • DC Voltage: +10.8 to +13.2 V
  • DC Current: 350 mA Max. - Measured 210 mA

PMI Website Link,



7.0 PMI Model No. PEC2-3D1G3D5G-60-10DBM-LM-SFF, 3.1 to 3.5 GHz, Limiting Amplifier



PMI Model No. PEC2-3D1G3D5G-60-10DBM-LM-SFF is an Integrated RF Module that operates over the 3.1 to 3.5 GHz frequency range. It has a typical noise figure of 8 dB and a maximum VSWR of 2.0:1. This model is outfitted with SMA female connectors in a housing measuring 2.98" x 0.78" x 0.26".

  • Frequency Range: 3.1 to 3.5 GHz
  • Input Power: -61 to +30 dBm CW Min.
  • Output Power:
    • +8.0 dBm Min., +11.0 dBm Max.
    • ±1.0 dB (Over Input Power Range)
  • Noise Figure: 8 dB Typ. - Measured 7.4 dB
  • Spurious Rejection: -60 dBc Typ.
  • Harmonic Rejection: -10 dBc Typ.
  • VSWR In/Out: 2.0:1 Max. - Measured 1.1:1/1.2:1
  • DC Voltage Supply: +12 to +15 VDC
  • DC Current Draw: 460 mA Typ.

PMI Website Link,



8.0 PMI Model No. PEC2-1G12G-60-21DBM-LM-PP, 1.0 to 12.0 GHz, Limiting Amplifier



PMI Model No. PEC2-1G12G-60-21DBM-LM-PP is an Integrated RF Module that operates over the 1.0 to 12.0 GHz frequency range. It has a typical noise figure of 8 dB and a maximum VSWR of 2.0:1. This model is outfitted with D 0.015 mm pins in a housing measuring 2.98" x 0.78" x 0.26".

  • Frequency Range: 1.0 to 12.0 GHz
  • Input Power: -61 to +15 dBm
  • Output Power:
    • 21 dBm Min. - Measured 26.76 dBm Max., +23.49 dBm Min.
    • ±2.0 dB (Over Input Power Range) Nominal - Measured ±1.63 dB
  • Noise Figure: 8 dB Typ.
  • Spurious Rejection: -60 dBc Typ.
  • Harmonic Rejection: -10 dBc Typ.
  • VSWR In/Out: 2.0:1 Max. - Measured 1.72:1/1.35:1
  • DC Voltage Supply: +12 to +15 VDC
  • DC Current Draw: 560 mA Typ.

PMI Website Link,



9.0 PMI Model No. PEC2-2G18G-2DBM-LM-SFF, 2.0 to 18.0 GHz, Limiting Amplifier



PMI Model No. PEC2-2G18G-2DBM-LM-SFF is a 2.0 to 18.0 GHz, Integrated RF Module. It has a maximum noise figure of 10 dB and a maximum VSWR of 2.0:1. The housing is outfitted with SMA female connectors and is measured at 2.98" x 0.78" x 0.26".

  • Frequency Range: 2.0 to 18.0 GHz
  • Input Power: -50 to +30 dBm CW
  • Output Power: +2.0 dBm Nominal ± 2.0 dB (Over Input Power Range)
  • Noise Figure: 10 dB Max. - Measured 9.7 dB
  • Spurious Rejection: -60 dBc Typ.
  • Harmonic Rejection: -10 dB Typ.
  • VSWR In/Out: 2.0:1 Max. - Measured 1.89:1/1.74:1
  • DC Voltage Supply: +12 to +15 VDC
  • DC Current Draw: 550 mA Max. - Measured 405 mA

PMI Website Link,



10.0 PMI Model No. PEC2-1G18G-60-9DBM-LM-SFF, 1.0 to 18.0 GHz, Limiting Amplifier



PMI Model No. PEC2-1G18G-60-9DBM-LM-SFF is a 1.0 to 18.0 GHz, Integrated RF Module. It has a typical noise figure of 8 dB and a and a maximum VSWR of 2.0:1. The housing is measured at 2.98" x 0.78" x 0.26" and has SMA female connectors.

  • Frequency Range: 1,0 to 18.0 GHz
  • Input Power: -61 to +30 dBm CW
  • Output Power:
    • +7.0 dBm Min., +11.0 dBm Max.
    • ±2.0 dB (Over Input Power Range)
  • Noise Figure: 8 dB Typ. - Measured 4.7 dB
  • Spurious Rejection: -60 dBc Typ.
  • Harmonic Rejection: -10 dBc Typ.
  • VSWR In/Out: 2.0:1 Max. - Measured 1.91:1
  • DC Voltage Supply: +12 to +15 VDC
  • DC Current Draw: 460 mA Typ. - Measured 404 mA

PMI Website Link,



11.0 PMI Model No. PEC2-2G18G-21DBM-LM-SFF, 2.0 to 18.0 GHz, Limiting Amplifier



PMI Model No. PEC2-2G18G-21DBM-LM-SFF is a 2.0 to 18.0 GHz, Limiting Amplifier. It has a maximum noise figure of 5 dB and a maximum VSWR of 2.0:1. The housing is measured at 2.98" x 0.78" x 0.26" and has SMA female connectors.

  • Frequency Range: 2.0 to 18.0 GHz
  • Input Power: -45 to +10 dBm CW
  • Saturated Output Power: +21 to +25 dBm Nominal
  • Output Power Variation: ±2.0 dBm Max. Over Operating Temperature Range
  • OP1dB: 4 dBm Below Psat Typ.
  • 2nd Harmonic Rejection: -8 dBc @ Psat
  • 3rd Harmonic Rejection: -9 dBc @ Psat
  • 3rd Order Intercept Point: 35 dBm - Design Goal
  • Noise Figure: 5 dB Max. - Measured 4.26 dB
  • VSWR In/Out: 2.0:1 Max. - Measured 1.49:1/1.90:1
  • Maximum RF Input Power: +17 dBm CW
  • DC Voltage Supply: +15 VDC
  • DC Current Draw: 700 mA Max. - Measured 567 mA

PMI Website Link,

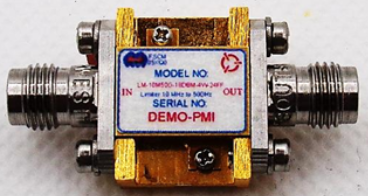

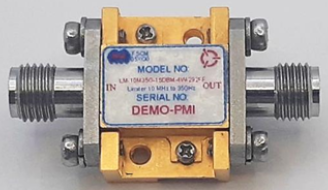

12.0 PMI Model No. LM-10M50G-18DBM-4W-24FF, 10 MHz to 50.0 GHz, Limiter



PMI Model No. LM-10M50G-18DBM-4W-24FF is a 10 MHz to 50.0 GHz, Limiter. It has a maximum insertion loss of 3.4 dB and a typical recovery time of 100 ns. The housing is outfitted with 2.4 female connectors and is measured at 0.53" x 0.70" x 0.26".

  • Frequency Range: 10 MHz to 50.0 GHz
  • Power Handling: 4 W CW Max.
  • Peak Input Power:
    • 20 W Max.
    • (Pw 1 us, 1% Duty Cycle) Tested up to 18.0 GHz
    • (Pw 10 us, 1% Duty Cycle) Tested up to 8.0 GHz
    • 16 W Max. @ 18.0 GHz (Pw 10 us, 1% Duty Cycle
  • Recovery Time: 100 ns Typ. - Measured 92 ns
  • Insertion Loss @ -10 dBm Input Power:
    • 10 MHz to 18.0 GHz: 1.5 dB Max. - Measured 1.29 dB
    • 18.0 to 40.0 GHz: 2.2 dB Max. - Measured 1.83 dB
    • 40.0 to 50.0 GHz: 3.4 dB Max. - Measured 3.07 dB
  • VSWR In/Out @ -10 dBm Input Power: 2.0:1 Max. - Measured 1.94:1/1.92:1
  • Flat Leakage Power: +18 dBm Typ.
  • P1dB: +15 dBm Typ.

PMI Website Link,

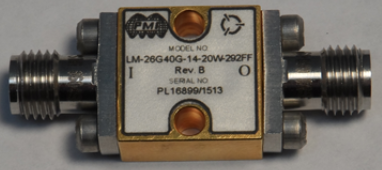

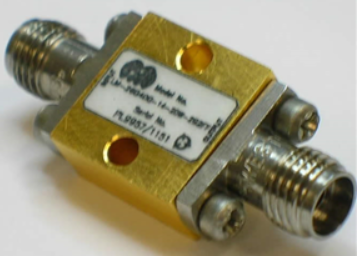

13.0 PMI Model No. LM-26G40G-14-20W-292FF Rev. B, 26.5 to 40.0 GHz, Limiter



PMI Model No. LM-26G40G-14-20W-292FF Rev. B is a Limiter that operates over the 26.5 to 40.0 GHz frequency range. It has a maximum insertion loss of 4 dB and a VSWR of 2.0:1. The unit is supplied in a housing measuring 0.50" x 0.50" x 0.22" and has 2.92 mm female connectors.

  • Frequency Range: 26.5 to 40.0 GHz
  • Insertion Loss: 4 dB Max. - Measured 2.96 dB
  • Peak Power: 20 W (43 dBm)
  • Pulse Width: 440 to 670 ns
  • PRF: 600 to 900 kHz
  • Duty Cycle: 40%
  • Leakage Power: +14 dBm Typ.
  • 1 dB Recovery Time: 250 ns Max. - Measured <100 ns
  • VSWR: 2.0:1 - Measured 1.92:1

PMI Website Link,



14.0 PMI Model No. LM-26G40G-14-20W-292FM, 26.5 to 40.0 GHz, Limiter



PMI Model No. LM-26G40G-14-20W-292FM is a 26.5 to 40.0 GHz, Limiter. It has a maximum insertion loss of 4 dB and a VSWR of 2.0:1. The housing is measured at 0.50" x 0.50" x 0.22" and has 2.92 mm female connectors.

  • Frequency Range: 26.5 to 40.0 GHz
  • Insertion Loss: 4 dB Max. - Measured 2.96 dB
  • Peak Power: 20 W (43 dBm)
  • Pulse Width: 440 to 670 ns
  • PRF: 600 to 900 kHz
  • Duty Cycle: 40%
  • Leakage Power: +14 dBm Typ.
  • 1 dB Recovery Time: 250 ns Max. - Measured <100 ns
  • VSWR: 2.0:1 - Measured 1.92:1

PMI Website Link,



15.0 PMI Model No. LM-26G40G-14-20W-292FF, 26.0 to 40.0 GHz, Limiter



PMI Model No. LM-26G40G-14-20W-292FF is a 26.0 to 40.0 GHz, Limiter. It has a maximum insertion loss of 4 dB and a VSWR of 2.0:1. It has 2.92 mm female connectors in a housing measured at 0.50" x 0.50" x 0.22".

  • Frequency Range: 26.5 to 40.0 GHz
  • Insertion Loss: 4 dB Max. - Measured 3.4 dB
  • Peak Power: 20 W (43 dBm)
  • Pulse Width: 440 to 670 ns
  • PRF: 600 to 900 kHz
  • Duty Cycle: 40%
  • Leakage Power: +14 dBm Typ.
  • 1 dB Recovery Time: 250 ns Max. - Measured 50 ns
  • VSWR: 2.0:1 - Measured 1.67:1

PMI Website Link,

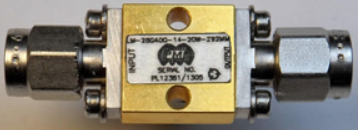

16.0 PMI Model No. LM-26G40G-14-20W-292MM, 26.5 to 40.0 GHz, Limiter



PMI Model No. LM-26G40G-14-20W-292MM is a 26.5 to 40.0 GHz, Limiter. It has a maximum insertion loss of 4 dB and a VSWR of 2.0:1. It has 2.92 mm male connectors in a housing measured at 0.50" x 0.50" x 0.22".

  • Frequency Range: 26.5 to 40.0 GHz
  • Insertion Loss: 4 dB Max. - Measured 2.96 dB
  • Peak Power: 20 W (43 dBm)
  • Pulse Width: 440 to 670 ns
  • PRF: 600 to 900 kHz
  • Duty Cycle: 40%
  • Leakage Power: +14 dBm Typ.
  • 1 dB Recovery Time: 250 ns Max. - Measured <100 ns
  • VSWR: 2.0:1 - Measured 1.92:1

PMI Website Link,



17.0 PMI Model No. LM-18G40G-SMT-1, 18.0 to 40.0 GHz, Limiter



PMI Model No. LM-18G40G-SMT-1 is a 18.0 to 40.0 GHz, Limiter. It has a maximum insertion loss of 4 dB and an input power of 2 W. It is supplied in a housing measured at 0.270" x 0.198" x 0.016".

  • Frequency Range: 18.0 to 40.0 GHz
  • Insertion Loss: 4 dB Max. - Measured 2.94 dB
  • Peak Power: 20 W (43 dBm)
  • Input Power: 2 W
  • Pulse Width: 440 to 670 ns
  • PRF: 600 to 900 kHz
  • Duty Cycle: 40%
  • Leakage Power: +14 dBm Typ.
  • 1 dB Recovery Time: 250 ns Max.
  • VSWR: 2.0:1 - Measured 1.85:1/1.87:1

PMI Website Link,



18.0 PMI Model No. LM-18G40G-18-1W-292FF, 18.0 to 40.0 GHz, Limiter



PMI Model No. LM-18G40G-18-1W-292FF is a 18.0 to 40.0 GHz, Limiter. It has a maximum insertion loss of 4 dB and a VSWR of 2.1:1. It has 2.92 mm female connectors in a housing measured at 0.50" x 0.50" x 0.22".

  • Frequency Range: 18.0 to 40.0 GHz
  • Insertion Loss: 4 dB Max. - Measured 3.51 dB
  • Input Power: 1 W CW Max.
  • VSWR: 2.1:1 - Measured 1.87:1
  • Leakage Power: +18 dBm Max. - Measured +12 dBm
  • Limiting Threshold: +9 dBm Max. - Measured +5 dBm
  • Recovery Time: 10 ns Max.

PMI Website Link,



19.0 PMI Model No. LM-32G36G-14-20W-SMT, 32.0 to 36.0 GHz, Limiter



PMI Model No. LM-32G36G-14-20W-SMT is a 32.0 to 36.0 GHz, Limiter. It has a maximum insertion loss of 2 dB and a peak power of 20 W. It is supplied in a housing measured at 0.270" x 0.198" x 0.016".

  • Frequency Range: 32.0 to 36.0 GHz
  • Insertion Loss: 2 dB Max. - Measured 1.61 dB
  • Peak Power: 20 W
  • Pulse Width: 30 us
  • Duty Cycle: 30%
  • Leakage Power: +14 dBm Typ.
  • 1 dB Recovery Time: 250 ns Max. - Measured 100 ns
  • VSWR: 2.0:1 - Measured 1.44:1

PMI Website Link,



20.0 PMI Model No. LM-35D5G-14-20W-292FF, 35.5 GHz ± 0.5 GHz, Limiter



PMI Model No. LM-35D5G-14-20W-292FF is a 35.0 to 36.0 GHz, Limiter. It has a maximum insertion loss of 3 dB and a peak power of 20 W. It has 2.92 mm female connectors in a housing measured at 0.50" x 0.50" x 0.22".

  • Frequency Range: 35.5 GHz ± 0.5 GHz
  • Insertion Loss: 2 dB Typ., 3 dB Max.
  • Peak Power: 20 W (43 dBm)
  • Pulse Width: 440 to 670 ns
  • PRF: 600 to 900 kHz
  • Duty Cycle: 40%
  • Leakage Power: +14 dBm Typ.
  • 1 dB Recovery Time: 100 ns Typ., 250 ns Max.

PMI Website Link,



21.0 PMI Model No. LM-10M35G-15DBM-4W-292FF, 10 MHz to 35.0 GHz, Limiter



PMI Model No. LM-10M35G-15DBM-4W-292FF is a 10 MHz to 35.0 GHz, Limiter. It has a maximum insertion loss of 4 dB and a typical recovery time of 150 ns. It has 2.4 mm female connectors in a housing measured at 0.53" x 0.70" x 0.26".

  • Frequency Range: 10 MHz to 35.0 GHz
  • Power Handling:
    • 25 W CW Max. (20 MHz)
    • 10 W CW Max. (1.0 GHz)
    • 8 W CW Max. (2.0 GHz)
    • 5 W CW Max. (4.0 GHz)
    • 4 W CW Max. (8.0 to 18.0 GHz)
  • Peak Input Power:
    • 50 W Peak Max. (20 MHz to 12.0 GHz)
    • 40 W Peak Max. (18.0 GHz)
    • (1 us Pw, 1% Duty Cycle)
  • Recovery Time: 150 ns Typ.
  • Insertion Loss @ -10 dBm Input Power:
    • 1.3 dB Max. (10 MHz to 8.0 GHz) - Measured 1.19 dB
    • 2.3 dB Max. (8.0 to 18.0 GHz) - Measured 2.15 dB
    • 2.6 dB Max. (18.0 to 25.0 GHz) - Measured 2.35 dB
    • 4.0 dB Max. (25.0 to 35.0 GHz) - Measured 3.76 dB
  • VSWR In/Out @ -10 dBm Input Power: 2.0:1 Max. - Measured 1.97:1
  • Flat Leakage Power:
    • +18 dBm Typ. (20 MHz to 2.0 GHz)
    • +18 dBm Typ. (2.0 to 4.0 GHz)
    • +16 dBm Typ. (4.0 to 8.0 GHz)
    • +12 dBm Typ. (8.0 to 12.0 GHz)
    • +10 dBm Typ. (12.0 to 18.0 GHz)
    • +10 dBm Typ. (20.0 to 28.0 GHz)
    • +10 dBm Typ. (28.0 to 35.0 GHz)
  • P1dB: +8 dBm Min.

PMI Website Link,



22.0 PMI Model No. LM-10M40G-15DBM-4W-AGAL, 10 MHz to 40.0 GHz, Limiter



PMI Model No. LM-10M40G-15DBM-4W-AGAL is a 10 MHz to 40.0 GHz, Limiter. It has a maximum insertion loss of 3.2 dB and a maximum recovery time of 100 ns. It has 2.92 mm female connectors in a housing measured at 0.53" x 0.70" x 0.26".

  • Frequency Range: 10 MHz to 40.0 GHz
  • Power Handling:
    • 5 W CW Max. (20 MHz to 12.0 GHz)
    • 4 W CW Max. (18.0 GHz)
  • Peak Input Power:
    • 25 W Peak Max. (20 MHz to 12.0 GHz)
    • 20 W Peak Max. (18.0 GHz)
    • (1 us Pw, 1% Duty Cycle)
  • Recovery Time: 100 ns Max.
  • Insertion Loss @ -10 dBm Input Power:
    • 1.0 dB Max. (10 MHz to 8.0 GHz) - Measured 0.78 dB
    • 1.5 dB Max. (8.0 to 18.0 GHz) - Measured 1.42 dB
    • 3.2 dB Max. (18.0 to 40.0 GHz) - Measured 3.13 dB
  • VSWR In/Out @ -10 dBm Input Power: 2.0:1 Max. - Measured 1.82:1/1.81:1
  • Flat Leakage Power:
    • +22 dBm Max. (20 MHz to 1.0 GHz) - Measured 21.27 dBm
    • +20 dBm Max. (1.0 to 4.0 GHz) - Measured 19.21 dBm
    • +18 dBm Max. (4.0 to 8.0 GHz) - Measured 17.13 dBm
    • +15 dBm Max. (8.0 to 12.0 GHz) - Measured 14.20 dBm
    • +13 dBm Max. (12.0 to 18.0 GHz) - Measured 11.24 dBm
    • +13 dBm Max. (20.0 to 28.0 GHz) - Measured 12.97 dBm
    • +12 dBm Max. (28.0 to 32.0 GHz) - Measured 11.79 dBm
    • +12 dBm Max. (32.0 to 40.0 GHz) - Measured 11.51 dBm
  • P1dB: +7 dBm Min.

PMI Website Link,

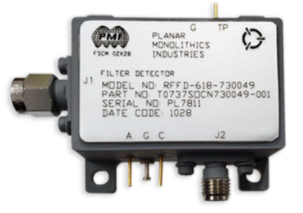

23.0 PMI Model No. RFFD-618-730049, 6.0 to 18.0 GHz, Low Pass Filter/Schottky Based Detector



PMI Model No. RFFD-618-730049 is a 6.0 to 18.0 GHz, Low Pass Filter combined with a Schottky Based Detector. It has a return loss of -10 dB and a maximum operating input power of 7 dBm. It has a SMA male RF input connector and a SMA female video output connector in a housing measured at 1.60" x 1.59" x 0.60".

  • Frequency Range: 6.0 to 18.0 GHz
  • Return Loss: -10 dB (swr 2:1)
  • Maximum Input Power: 7 dBm Operation
  • Maximum Input Power: 20 dBm Survival with No Degradation
  • Filter Rejection: 23 dB Min. (20.0 to 26.0 GHz)
  • Voltage Sensitivity: 80 to 140 mV
  • Barrier Potential: 225 to 270 mV with 100 uA Bias to 25°C
  • Operating Dynamic Range: -23 to +7 dBm
  • Frequency Flatness: ±0.8 dB with 1 dB to 2 dB Typ. Slope
  • Diode Voltage Protection: 1.0 V Max. @ 30 mA
  • Tracking Detector-Balance: ±20 mV Max. Over Operating Temperature

PMI Website Link,

DC to 50 GHz Components, Modules, and Sub-Systems

PMI offers just about any RF/Microwave component, module, or sub-system for both industrial and military based requirements.  Please click on the product types below to be directed to our web site catalog.  Components and modules can be modified to meet your exact requirement.

(Click on links below to be directed to the web listings)
