PMI推出系列新产品

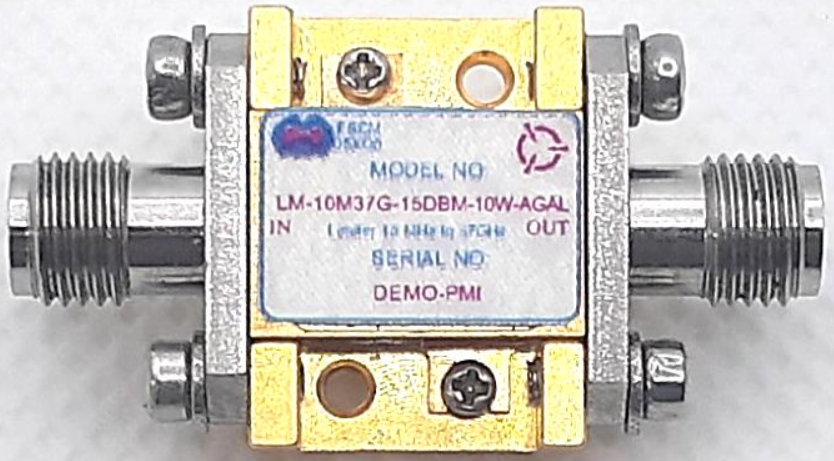

1.0 PMI Model No. LM-10M37G-15DBM-10W-AGAL, 10 MHz to 37.0 GHz, Limiter



PMI Model No. LM-10M37G-15DBM-10W-AGAL is a Limiter that operates over the 10 MHz to 37.0 GHz frequency range. It has a maximum insertion loss of 4.3 dB and a maximum VSWR of 1.8:1. This model is outfitted with 2.92 female connectors in a housing measuring 0.53" x 0.70" x 0.26".

  • Frequency Range: 10 MHz to 37.0 GHz
  • Power Handling:
    • 25 W CW Max. (20 MHz to 1.0 GHz)
    • 10 W CW Max. (2.0 to 18.0 GHz)
  • Peak Input Power:
    • 50 W Peak Max. (20 MHz to 12.0 GHz)
    • 40 W Peak Max. (18.0 GHz)
    • (1 us Pw, 1% Duty Cycle)
  • Recovery Time: 150 ns Typ.
  • Insertion Loss @ -10 dBm Input Power:
    • 1.0 dB Max. (10 MHz to 8.0 GHz) - Measured 0.94 dB
    • 2.0 dB Max. (8.0 to 18.0 GHz) - Measured 1.72 dB
    • 2.7 dB Max. (18.0 to 30.0 GHz) - Measured 2.51 dB
    • 4.3 dB Max. (30.0 to 37.0 GHz) - Measured 4.19 dB
  • VSWR In/Out @ -10 dBm Input Power: 1.8:1 Max. - Measured 1.77:1
  • Flat Leakage Power:
    • +18 dBm Typ. (20 MHz)
    • +20 dBm Typ. (1.0 GHz)
    • +16 dBm Typ. (4.0 GHz)
    • +13 dBm Typ. (8.0 GHz)
    • +10 dBm Typ. (18.0 GHz)
    • +10 dBm Typ. (20.0 GHz)
    • +10 dBm Typ. (28.0 GHz)
    • +10 dBm Typ. (30.0 GHz)
    • +10 dBm Typ. (35.0 GHz)
    • +8 dBm Typ. (37.0 GHz)
  • P1dB: +6 dBm Min.

PMI Website Link,

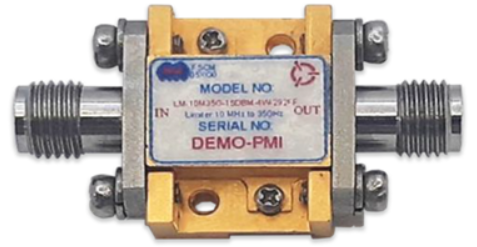

2.0 PMI Model No. LM-10M35G-15DBM-4W-292FF, 10 MHz to 35.0 GHz, Limiter



PMI Model No. LM-10M35G-15DBM-4W-292FF is a Limiter that operates over the 10 MHz to 35.0 GHz frequency range. It has a typical recovery time of 150 ns and a maximum VSWR of 2.0:1. This model is outfitted with 2.92 female connectors in a housing measuring 0.53" x 0.70" x 0.26".

  • Frequency Range: 10 MHz to 35.0 GHz
  • Power Handling:
    • 25 W CW Max. (20 MHz)
    • 10 W CW Max. (1.0 GHz)
    • 8 W CW Max. (2.0 GHz)
    • 5 W CW Max. (4.0 GHz)
    • 4 W CW Max. (8.0 to 18.0 GHz)
  • Peak Input Power:
    • 50 W Peak Max. (20 MHz to 12.0 GHz)
    • 40 W Peak Max. (18.0 GHz)
    • (1 us Pw, 1% Duty Cycle)
  • Recovery Time: 150 ns Typ.
  • Insertion Loss @ -10 dBm Input Power:
    • 1.3 dB Max. (10 MHz to 8.0 GHz) - Measured 1.19 dB
    • 2.3 dB Max. (8.0 to 18.0 GHz) - Measured 2.15 dB
    • 2.6 dB Max. (18.0 to 25.0 GHz) - Measured 2.35 dB
    • 4.0 dB Max. (25.0 to 35.0 GHz) - Measured 3.76 dB
  • VSWR In/Out @ -10 dBm Input Power: 2.0:1 Max. - Measured 1.97:1
  • Flat Leakage Power:
    • +18 dBm Typ. (20 MHz to 2.0 GHz)
    • +18 dBm Typ. (2.0 to 4.0 GHz)
    • +16 dBm Typ. (4.0 to 8.0 GHz)
    • +12 dBm Typ. (8.0 to 12.0 GHz)
    • +10 dBm Typ. (12.0 to 18.0 GHz)
    • +10 dBm Typ. (20.0 to 28.0 GHz)
    • +10 dBm Typ. (28.0 to 35.0 GHz)
  • P1dB: +8 dBm Min. - Measured 9.5 dBm

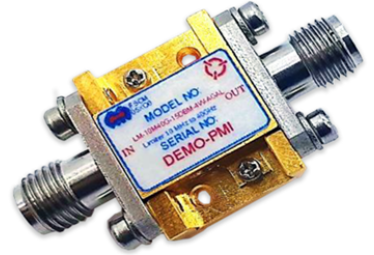

3.0 PMI Model No. LM-10M40G-15DBM-4W-AGAL, 10 MHz to 40.0 GHz, Limiter



PMI Model No. LM-10M40G-15DBM-4W-AGAL is a Limiter that operates over the 10 MHz to 40.0 GHz frequency range. It has a maximum recovery time of 100 ns and a maximum VSWR of 2.0:1. This model is outfitted with 2.92 female connectors in a housing measuring 0.53" x 0.70" x 0.26".

  • Frequency Range: 10 MHz to 40.0 GHz
  • Power Handling:
    • 5 W CW Max. (20 MHz to 12.0 GHz)
    • 4 W CW Max. (18.0 GHz)
  • Peak Input Power:
    • 25 W Peak Max. (20 MHz to 12.0 GHz)
    • 20 W Peak Max. (18.0 GHz)
    • (1 us Pw, 1% Duty Cycle)
  • Recovery Time: 100 ns Max.
  • Insertion Loss @ -10 dBm Input Power:
    • 1.0 dB Max. (10 MHz to 8.0 GHz) - Measured 0.78 dB
    • 1.5 dB Max. (8.0 to 18.0 GHz) - Measured 1.42 dB
    • 3.2 dB Max. (18.0 to 40.0 GHz) - Measured 3.13 dB
  • VSWR In/Out @ -10 dBm Input Power: 2.0:1 Max. - Measured 1.82:1/1.81:1
  • Flat Leakage Power:
    • +22 dBm Max. (20 MHz to 1.0 GHz) - Measured 21.27 dBm
    • +20 dBm Max. (1.0 to 4.0 GHz) - Measured 19.21 dBm
    • +18 dBm Max. (4.0 to 8.0 GHz) - Measured 17.13 dBm
    • +15 dBm Max. (8.0 to 12.0 GHz) - Measured 14.2 dBm
    • +13 dBm Max. (12.0 to 18.0 GHz) - Measured 11.24 dBm
    • +13 dBm Max. (20.0 to 28.0 GHz) - Measured 12.97 dBm
    • +12 dBm Max. (28.0 to 32.0 GHz) - Measured 11.79 dBm
    • +12 dBm Max. (32.0 to 40.0 GHz) - Measured 11.51 dBm
  • P1dB: +7 dBm Min. - Measured 7.5 dBm

PMI Website Link,



4.0 PMI Model No. LM-10M50G-18DBM-4W-24FF, 10 MHz to 50.0 GHz, Limiter



PMI Model No. LM-10M50G-18DBM-4W-24FF is a 10 MHz to 50.0 GHz, Limiter It has a typical recovery time of 100 ns and a maximum VSWR of 2.0:1. It has 2.4 female connectors in a housing measured at 0.53" x 0.70" x 0.26".

  • Frequency Range: 10 MHz to 50.0 GHz
  • Power Handling: 4 W CW Max.
  • Peak Input Power:
    • 20 W Max.
    • (Pw 1 us, 1% Duty Cycle) Tested up to 18.0 GHz
    • (Pw 10 us, 1% Duty Cycle) Tested up to 8.0 GHz
    • (Pw 10 us, 1% Duty Cycle) 16 W Max. @ 18.0 GHz
  • Recovery Time: 100 ns Typ. - Measured 92 ns
  • Insertion Loss @ -10 dBm Input Power:
    • 1.5 dB Max. (10 MHz to 18.0 GHz) - Measured 1.29 dB
    • 2.2 dB Max. (18.0 to 40.0 GHz) - Measured 1.83 dB
    • 3.4 dB Max. (40.0 to 50.0 GHz) - Measured 3.07 dB
  • VSWR In/Out @ -10 dBm Input Power: 2.0:1 Max. - Measured 1.94:1/1.92:1
  • Flat Leakage Power: +18 dBm Typ.
  • P1dB: +15 dBm Typ.

PMI Website Link,

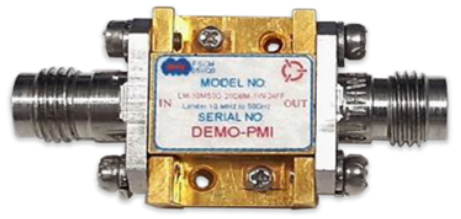

5.0 PMI Model No. LM-10M50G-20DBM-1W-24FF, 10 MHz to 50.0 GHz, Limiter



PMI Model No. LM-10M50G-20DBM-1W-24FF is a Limiter that operates over the 10 MHz to 50.0 GHz frequency range. It has a maximum recovery time of 100 ns and a maximum VSWR of 2.0:1. This model is outfitted with 2.4 female connectors in a housing measuring 0.53" x 0.70" x 0.26".

  • Frequency Range: 10 MHz to 50.0 GHz
  • Power Handling:
    • 1.5 W CW Max. (20 MHz to 12.0 GHz)
    • 1 W CW Max. (18.0 GHz)
  • Peak Input Power:
    • 10 W Peak Max. (20 MHz to 1.0 GHz)
    • 6 W Peak Max. (4.0 to 8.0 GHz)
    • 4 W Peak Max. (12.0 to 18.0 GHz)
    • (Pw 1 us, 1% Duty Cycle)
  • Recovery Time: 100 ns Max. - Measured 74 ns
  • Insertion Loss @ -10 dBm Input Power:
    • 1.5 dB Max. (10 MHz to 18.0 GHz) - Measured 1.22 dB
    • 2.3 dB Max. (18.0 to 40.0 GHz) - Measured 2.15 dB
    • 2.5 dB Max. (40.0 to 50.0 GHz) - Measured 2.22 dB
  • VSWR In/Out @ -10 dBm Input Power: 2.0:1 Max. - Measured 1.76:1/1.86:1
  • Flat Leakage Power: +22 dBm Typ.
  • P1dB: +16 dBm Typ.

PMI Website Link,

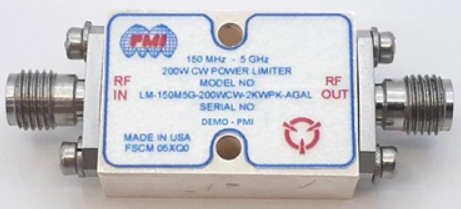

6.0 PMI Model No. LM-150M5G-200CW-2KWPK-AGAL, 0.15 to 5.0 GHz, Limiter



PMI Model No. LM-150M5G-200CW-2KWPK-AGAL is a Limiter that operates over the 0.15 to 5.0 GHz frequency range. It has a maximum recovery time of 100 ns and a maximum VSWR of 1.70:1. This model is outfitted with SMA female connectors in a housing measuring 1.00" x 0.68" x 0.35".

  • Frequency Range: 0.15 to 5.0 GHz
  • Power Handling:
    • 200 W CW (+53 dBm) Typ.
    • 2 kW Peak Power (+63 dBm) Typ.
    • (25 us PW, 5% Duty Cycle)
  • Insertion Loss:
    • 2.0 dB Max. (0.15 to 0.3 GHz) - Measured 1.89 dB
    • 1.5 dB Max. (0.3 to 5.0 GHz) - Measured 1.17 dB
  • VSWR (In/Out): 1.70:1 Max. - Measured 1.68:1/1.67:1
  • Flat Leakage Power: +20 dBm Typ.
  • P1dB: +6 dBm Min. - Measured 6.5 dBm
  • Recovery Time: 100 ns Max. - Measured 33.11 ns

PMI Website Link,



7.0 PMI Model No. LM-10M62G-20DBM-1W-24FF, 10 MHz to 62.0 GHz, Limiter



PMI Model No. LM-10M62G-20DBM-1W-24FF is a Limiter that operates over the 10 MHz to 62.0 GHz frequency range. It has a maximum recovery time of 100 ns and a maximum VSWR of 3.0:1. This model is outfitted with 2.4 female connectors in a housing measuring 0.53" x 0.0.70" x 0.26".

  • Frequency Range: 10 MHz to 62.0 GHz
  • Power Handling:
    • 1.5 W CW Max. (20 MHz to 12.0 GHz)
    • 1.0 W CW Max. (18.0 GHz)
  • Peak Input Power:
    • 10 W Peak Max. (20 MHz to 1.0 GHz)
    • 6 W Peak Max. (4.0 to 8.0 GHz)
    • 4 W Peak Max. (12.0 to 18.0 GHz)
    • (Pw 1 us, 1% Duty Cycle)
  • Insertion Loss (-10 dBm Input Power):
    • 1.5 dB Max. (10 MHz to 18.0 GHz) - Measured 0.95 dB
    • 2.3 dB Max. (18.0 to 40.0 GHz) - Measured 1.64 dB
    • 2.5 dB Typ. (40.0 to 50.0 GHz) - Measured 2.43 dB
    • 4.0 dB Typ. (50.0 to 62.0 GHz)
  • VSWR In/Out (-10 dBm Input Power):
    • 1.8:1 Max. (10 MHz to 18.0 GHz) - Measured 1.67:1
    • 2.0:1 Max. (18.0 to 40.0 GHz) - Measured 1.93:1
    • 2.2:1 Max. (40.0 to 50.0 GHz) - Measured 2.1:1
    • 3.0:1 Typ. (50.0 to 62.0 GHz) - Measured 2.97:1
  • Flat Leakage Power: +22 dBm Typ.
  • P1dB: +16 dBm Typ.
  • Recovery Time: 100 ns Max. - Measured 74 ns

PMI Website Link,

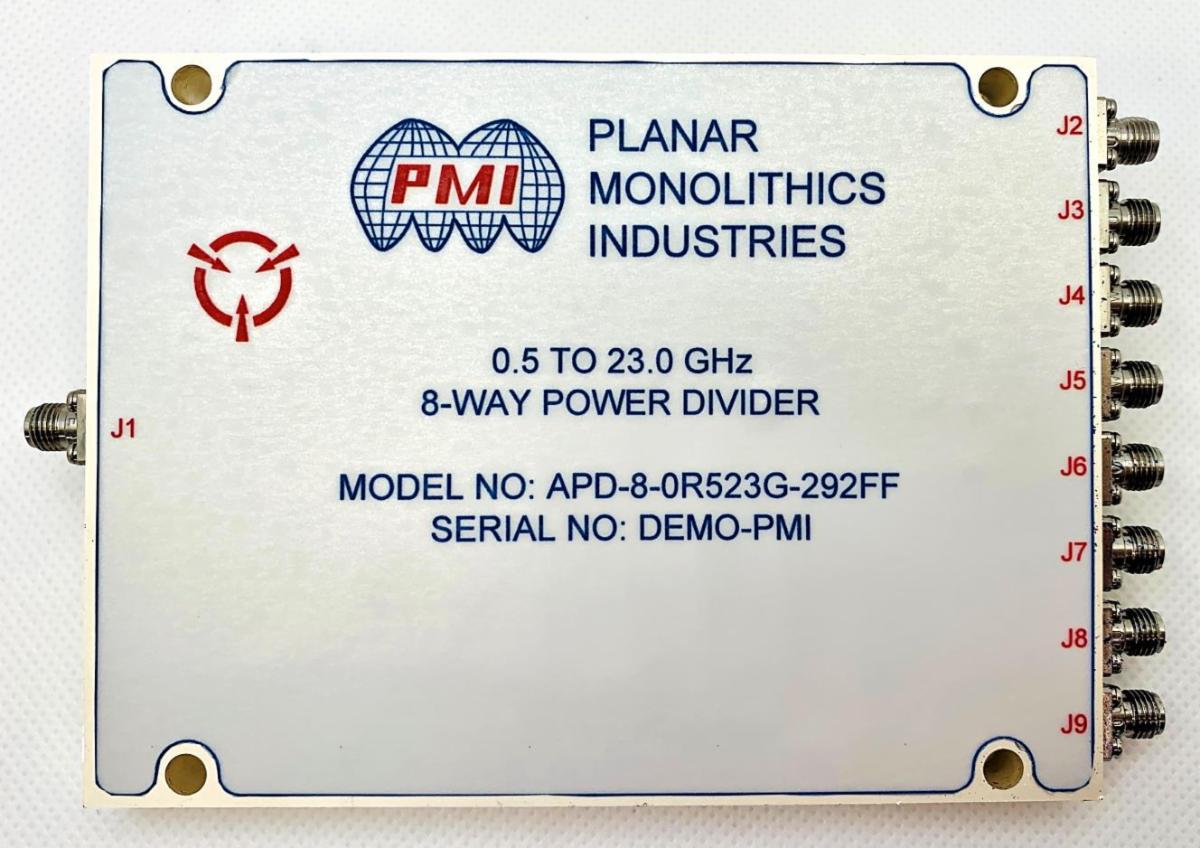

8.0 PMI Model No. APD-8-0R523G-292FF, 0.5 to 23.0 GHz, 8-Way Power Divider



PMI Model No. APD-8-0R523G-292FF is a 0.5 to 23.0 GHz, 8-Way Power Divider. It has a maximum insertion loss 7.0 dB and a typical isolation of 10 dB. The housing is measured at 5.00" x 3.70" x 0.43" and has 2.92 female connectors.

  • Frequency Range: 0.5 to 23.0 GHz
  • Insertion Loss:
    • 2.0 dB Max. (0.5 to 1.0 GHz) - Measured 1.77 dB
    • 2.0 dB Max. (1.0 to 2.0 GHz) - Measured 1.69 dB
    • 2.0 dB Max. (2.0 to 8.0 GHz) - Measured 1.85 dB
    • 3.2 dB Max. (8.0 to 18.0 GHz) - Measured 3.0 dB
    • 5.0 dB Max. (18.0 to 22.0 GHz) - Measured 4.81 dB
    • 7.0 dB Max. (22.0 to 23.0 GHz) - Measured 6.34 dB
  • Insertion Loss Flatness (Ref Line of Best Fit)
    • ±1 dB Max. (0.5 to 20.0 GHz) - Measured ±0.9 dB
    • ±1 dB Max. (1.0 to 20.0 GHz) - Measured ±0.9 dB
    • ±1 dB Max. (2.0 to 20.0 GHz) - Measured ±0.7 dB
    • ±1 dB Max. (0.5 to 18.0 GHz) - Measured ±0.9 dB
    • ±1 dB Max. (1.0 to 18.0 GHz) - Measured ±0.9 dB
    • ±1 dB Max. (2.0 to 18.0 GHz) - Measured ±0.7 dB
    • ±2 dB Max. (20.0 to 23.0 GHz) - Measured ±1.8 dB
  • VSWR Input:
    • 2.5:1 Typ. (0.5 to 1.0 GHz) - Measured 2.41:1
    • 2.6:1 Max. (1.0 to 2.0 GHz) - Measured 2.5:1
    • 2.1:1 Max. (2.0 to 8.0 GHz) - Measured 2.04:1
    • 2.0:1 Max. (8.0 to 18.0 GHz) - Measured 1.99:1
    • 2.0:1 Typ. (18.0 to 22.0 GHz)
    • 2.0:1 Typ. (22.0 to 23.0 GHz)
  • VSWR Output:
    • 1.5:1 Max. (0.5 to 1.0 GHz) - Measured 1.28:1
    • 1.5:1 Max. (1.0 to 2.0 GHz) - Measured 1.24:1
    • 1.7:1 Max. (2.0 to 8.0 GHz) - Measured 1.65:1
    • 1.8:1 Max. (8.0 to 18.0 GHz) - Measured 1.7:1
    • 2.0:1 Max. (18.0 to 22.0 GHz) - Measured 1.78:1
    • 2.0:1 Max. (22.0 to 23.0 GHz) - Measured 1.66:1
  • Isolation:
    • 10 dB Typ. (0.5 to 1.0 GHz)
    • 10 dB Typ. (1.0 to 2.0 GHz) - Measured 11.21 dB
    • 20 dB Typ. (2.0 to 8.0 GHz)
    • 20 dB Typ. (8.0 to 18.0 GHz)
    • 15 dB Typ. (18.0 to 22.0 GHz)
    • 10 dB Typ. (22.0 to 23.0 GHz)
  • Amplitude Balance:
    • ±0.5 dB Max. (0.5 to 1.0 GHz) - Measured ±0.31 dB
    • ±0.5 dB Max. (1.0 to 2.0 GHz) - Measured ±0.31 dB
    • ±0.3 dB Max. (2.0 to 8.0 GHz) - Measured ±0.17 dB
    • ±0.5 dB Max. (8.0 to 18.0 GHz) - Measured ±0.42 dB
    • ±1.2 dB Max. (18.0 to 22.0 GHz) - Measured ±0.90 dB
    • ±2.0 dB Max. (22.0 to 23.0 GHz) - Measured ±1.46 dB
  • Phase Balance:
    • 5° Max. (0.5 to 1.0 GHz) - Measured 4.43°
    • 3° Max. (1.0 to 2.0 GHz) - Measured 1.24°
    • 4° Max. (2.0 to 8.0 GHz) - Measured 3.76°
    • 10° Max. (8.0 to 18.0 GHz) - Measured 9.11°
    • 15° Max. (18.0 to 22.0 GHz) - Measured 13.18°
    • 20° Max. (22.0 to 23.0 GHz) - Measured 13.29°
  • Average Power: 25 W (Into 1.2:1 Load VSWR)

PMI Website Link,

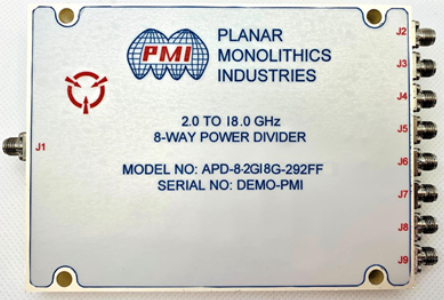

9.0 PMI Model No. APD-8-2G18G-292FF, 2.0 to 18.0 GHz,8-Way Power Divider



PMI Model No. APD-8-2G18G-292FF is an 8-Way Power Divider that operates over the 2.0 to 18.0 GHz frequency range. It has a maximum insertion loss of 3.2 dB and a typical isolation of 20 dB. This model is outfitted with 2.92 mm female connectors in a housing measuring 5.00" x 3.70" x 0.43".

  • Frequency Range: 2.0 to 18.0 GHz
  • Insertion Loss:
    • 2.0 dB Max. (2.0 to 8.0 GHz) - Measured 1.85 dB
    • 3.2 dB Max. (8.0 to 18.0 GHz) - Measured 3.0 dB
  • Insertion Loss Flatness (Ref Line of Best Fit): ±1 dB Max.
  • VSWR Input:
    • 2.1:1 Max. (2.0 to 8.0 GHz) - Measured 2.01:1
    • 2.0:1 Max. (8.0 to 18.0 GHz) - Measured 1.88:1
  • VSWR Output:
    • 1.7:1 Max. (2.0 to 8.0 GHz) - Measured 1.64:1
    • 1.8:1 Max. (8.0 to 18.0 GHz) - Measured 1.69:1
  • Isolation:
    • 20 dB Typ. (2.0 to 8.0 GHz)
    • 20 dB Typ. (8.0 to 18.0 GHz)
  • Amplitude Balance:
    • ±0.3 dB Max. (2.0 to 8.0 GHz) - Measured ±0.17 dB
    • ±0.5 dB Max. (8.0 to 18.0 GHz) - Measured ±0.42 dB
  • Phase Balance:
    • 4° Max. (2.0 to 8.0 GHz)
    • 10° Typ. (8.0 to 18.0 GHz)
  • Average Power: 25 W (Into 1.2:1 Load VSWR)

PMI Website Link,

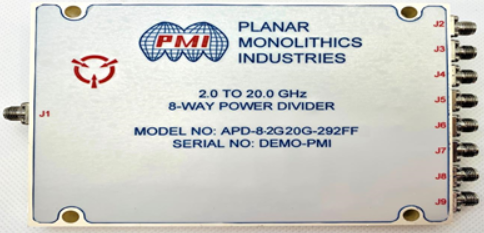

10.0 PMI Model No. APD-8-2G20G-292FF, 2.0 to 20.0 GHz, 8-Way Power Divider



PMI Model No. APD-8-2G20G-292FF is a 2.0 to 20.0 GHz, 8-Way Power Divider. It has a maximum insertion loss of 5.0 dB and a typical isolation of 20 dB. The housing is outfitted with 2.92 female connectors and is measured at 5.00" x 3.70" x 0.43".

  • Frequency Range: 2.0 to 20.0 GHz
  • Insertion Loss:
    • 2.0 dB Max. (2.0 to 8.0 GHz) - Measured 1.85 dB
    • 3.2 dB Max. (8.0 to 18.0 GHz) - Measured 3.0 dB
    • 5.0 dB Max. (18.0 to 20.0 GHz) - Measured 3.63 dB
  • Insertion Loss Flatness (Ref Line of Best Fit):
    • ±1 dB Max. (2.0 to 20.0 GHz) - Measured ±0.76 dB
    • ±1 dB Max. (1.0 to 18.0 GHz) - Measured ±0.79 dB
    • ±1 dB Max. (2.0 to 18.0 GHz) - Measured ±0.76 dB
  • VSWR Input:
    • 2.1:1 Max. (2.0 to 8.0 GHz) - Measured 2.01:1
    • 2.0:1 Max. (8.0 to 18.0 GHz) - Measured 1.88:1
    • 2.0:1 Typ. (18.0 to 20.0 GHz) - Measured 1.9:1
  • VSWR Output:
    • 1.7:1 Max. (2.0 to 8.0 GHz) - Measured 1.64:1
    • 1.8:1 Max. (8.0 to 18.0 GHz) - Measured 1.69:1
    • 2.0:1 Max. (18.0 to 20.0 GHz) - Measured 1.74:1
  • Isolation:
    • 20 dB Typ. (2.0 to 8.0 GHz)
    • 20 dB Typ. (8.0 to 18.0 GHz)
    • 15 dB Typ. (18.0 to 20.0 GHz)
  • Amplitude Balance:
    • ±0.3 dB Max. (2.0 to 8.0 GHz) - Measured ±0.17 dB
    • ±0.5 dB Max. (8.0 to 18.0 GHz) - Measured ±0.42 dB
    • ±1.2 dB Max. (18.0 to 20.0 GHz) - Measured ±0.55 dB
  • Phase Balance:
    • 4° Max. (2.0 to 8.0 GHz) - Measured 3.76°
    • 10° Max. (8.0 to 18.0 GHz) - Measured 9.11°
    • 15° Typ. (18.0 to 20.0 GHz)
  • Average Power: 25 W (Into 1.2:1 Load VSWR)

PMI Website Link,



11.0 PMI Model No. APD-8-0R520G-292FF, 0.5 to 20.0 GHz, 8-Way Power Divider



PMI Model No. APD-8-0R520G-292FF is a 0.5 to 20.0 GHz, 8-Way Power Divider. It has a maximum insertion loss of 5.0 dB and a typical isolation of 15 dB. The housing is measured at 5.00" x 3.70" x 0.43" and has 2.92 mm female connectors.

  • Frequency Range: 0.5 to 20.0 GHz
  • Insertion Loss:
    • 2.0 dB Max. (0.5 to 1.0 GHz) - Measured 1.77 dB
    • 2.0 dB Max. (1.0 to 2.0 GHz) - Measured 1.69 dB
    • 2.0 dB Max. (2.0 to 8.0 GHz) - Measured 1.85 dB
    • 3.2 dB Max. (8.0 to 18.0 GHz) - Measured 3.00 dB
    • 5.0 dB Max. (18.0 to 20.0 GHz) - Measured 3.63 dB
  • Insertion Loss Flatness (Ref Line of Best Fit):
    • ±1 dB Max. (0.5 to 20.0 GHz) - Measured ±0.9 dB
    • ±1 dB Max. (1.0 to 20.0 GHz) - Measured ±0.9 dB
    • ±1 dB Max. (2.0 to 20.0 GHz) - Measured ±0.7 dB
    • ±1 dB Max. (0.5 to 18.0 GHz) - Measured ±0.9 dB
    • ±1 dB Max. (1.0 to 18.0 GHz) - Measured ±0.9 dB
    • ±1 dB Max. (2.0 to 18.0 GHz) - Measured ±0.7 dB
  • VSWR Input:
    • 2.5:1 Typ. (0.5 to 1.0 GHz) - Measured 2.41:1
    • 2.6:1 Max. (1.0 to 2.0 GHz) - Measured 2.5:1
    • 2.1:1 Max. (2.0 to 8.0 GHz) - Measured 2.04:1
    • 2.0:1 Max. (8.0 to 18.0 GHz) - Measured 1.99:1
    • 2.0:1 Typ. (18.0 to 20.0 GHz) - Measured 1.9:1
  • VSWR Output:
    • 1.5:1 Max. (0.5 to 1.0 GHz) - Measured 1.37:1
    • 1.5:1 Max. (1.0 to 2.0 GHz) - Measured 1.24:1
    • 1.7:1 Max. (2.0 to 8.0 GHz) - Measured 1.65:1
    • 1.8:1 Max. (8.0 to 18.0 GHz) - Measured 1.7:1
    • 2.0:1 Max. (18.0 to 20.0 GHz) - Measured 1.76:1
  • Isolation:
    • 10 dB Typ. (0.5 to 1.0 GHz)
    • 10 dB Typ. (1.0 to 2.0 GHz) - Measured 11.25 dB
    • 20 dB Typ. (2.0 to 8.0 GHz)
    • 20 dB Typ. (8.0 to 18.0 GHz)
    • 15 dB Typ. (18.0 to 20.0 GHz)
  • Amplitude Balance:
    • ±0.5 dB Max. (0.5 to 1.0 GHz) - Measured ±0.31 dB
    • ±0.5 dB Max. (1.0 to 2.0 GHz) - Measured ±0.31 dB
    • ±0.3 dB Max. (2.0 to 8.0 GHz) - Measured ±0.17 dB
    • ±0.5 dB Max. (8.0 to 18.0 GHz) - Measured ±0.42 dB
    • ±1.2 dB Max. (18.0 to 20.0 GHz) - Measured ±0.55 dB
  • Phase Balance:
    • 5° Max. (0.5 to 1.0 GHz) - Measured 4.43°
    • 3° Max. (1.0 to 2.0 GHz) - Measured 1.24°
    • 4° Max. (2.0 to 8.0 GHz) - Measured 3.76°
    • 10° Max. (8.0 to 18.0 GHz) - Measured 9.11°
    • 15° Typ. (18.0 to 20.0 GHz)
  • Average Power: 25 W (Into 1.2:1 Load VSWR)

PMI Website Link,



12.0 PMI Model No. APD-8-1G18G-292FF, 1.0 to 18.0 GHz, 8-Way Power Divider



PMI Model No. APD-8-1G18G-292FF is a 1.0 to 18.0 GHz, 8-Way Power Divider. It has a maximum insertion loss of 3.2 dB and a typical isolation of 20 dB. The housing is measured at 5.00" x 3.70" x 0.43" and has 2.92 mm female connectors.

  • Frequency Range: 1.0 to 18.0 GHz
  • Insertion Loss:
    • 2.0 dB Max. (1.0 to 2.0 GHz) - Measured 1.69 dB
    • 2.0 dB Max. (2.0 to 8.0 GHz) - Measured 1.85 dB
    • 3.2 dB Max. (8.0 to 18.0 GHz) - Measured 3.00 dB
  • Insertion Loss Flatness (Ref Line of Best Fit):
    • ±1 dB Max. (1.0 to 18.0 GHz) - Measured ±0.79 dB
    • ±1 dB Max. (2.0 to 18.0 GHz) - Measured ±0.76 dB
  • VSWR Input:
    • 2.6:1 Max. (1.0 to 2.0 GHz) - Measured 2.5:1
    • 2.1:1 Max. (2.0 to 8.0 GHz) - Measured 2.04:1
    • 2.0:1 Max. (8.0 to 18.0 GHz) - Measured 1.99:1
  • VSWR Output:
    • 1.5:1 Max. (1.0 to 2.0 GHz) - Measured 1.24:1
    • 1.7:1 Max. (2.0 to 8.0 GHz) - Measured 1.65:1
    • 1.8:1 Max. (8.0 to 18.0 GHz) - Measured 1.7:1
  • Isolation:
    • 10 dB Typ. (1.0 to 2.0 GHz) - Measured 11.21 dB
    • 20 dB Typ. (2.0 to 8.0 GHz)
    • 20 dB Typ. (8.0 to 18.0 GHz)
  • Amplitude Balance:
    • ±0.5 dB Max. (1.0 to 2.0 GHz) - Measured ±0.31 dB
    • ±0.3 dB Max. (2.0 to 8.0 GHz) - Measured ±0.17 dB
    • ±0.5 dB Max. (8.0 to 18.0 GHz) - Measured ±0.42 dB
  • Phase Balance:
    • 3° Max. (1.0 to 2.0 GHz) - Measured 1.24°
    • 4° Max. (2.0 to 8.0 GHz) - Measured 3.76°
    • 10° Typ. (8.0 to 18.0 GHz)
  • Average Power: 25 W (Into 1.2:1 Load VSWR)

PMI Website Link,



13.0 PMI Model No. APD-8-1G20G-292FF, 1.0 to 20.0 GHz, 8-Way Power Divider



PMI Model No. APD-8-1G20G-292FF is a 1.0 to 20.0 GHz, 8-Way Power Divider. It has a maximum insertion loss of 5.0 dB and a typical isolation of 20 dB. The housing is outfitted with 2.92 mm female connectors and is measured at 5.00" x 3.70" x 0.43".

  • Frequency Range: 1.0 to 20.0 GHz
  • Insertion Loss:
    • 2.0 dB Max. (1.0 to 2.0 GHz) - Measured 1.69 dB
    • 2.0 dB Max. (2.0 to 8.0 GHz) - Measured 1.85 dB
    • 3.2 dB Max. (8.0 to 18.0 GHz) - Measured 3.00 dB
    • 5.0 dB Max. (18.0 to 20.0 GHz) - Measured 3.63 dB
  • Insertion Loss Flatness (Ref Line of Best Fit):
    • ±1 dB Max. (1.0 to 20.0 GHz) - Measured ±0.7 dB
    • ±1 dB Max. (1.0 to 18.0 GHz) - Measured ±0.9 dB
    • ±1 dB Max. (2.0 to 18.0 GHz) - Measured ±0.7 dB
  • VSWR Input:
    • 2.6:1 Max. (1.0 to 2.0 GHz) - Measured 2.5:1
    • 2.1:1 Max. (2.0 to 8.0 GHz) - Measured 2.04:1
    • 2.0:1 Max. (8.0 to 18.0 GHz) - Measured 1.99:1
    • 2.0:1 Typ. (18.0 to 20.0 GHz) - Measured 1.9:1
  • VSWR Output:
    • 1.5:1 Max. (1.0 to 2.0 GHz) - Measured 1.24:1
    • 1.7:1 Max. (2.0 to 8.0 GHz) - Measured 1.65:1
    • 1.8:1 Max. (8.0 to 18.0 GHz) - Measured 1.7:1
    • 2.0:1 Max. (18.0 to 20.0 GHz) - Measured 1.76:1
  • Isolation:
    • 10 dB Typ. (1.0 to 2.0 GHz) - Measured 11.21 dB
    • 20 dB Typ. (2.0 to 8.0 GHz)
    • 20 dB Typ. (8.0 to 18.0 GHz)
    • 15 dB Typ. (18.0 to 20.0 GHz)
  • Amplitude Balance:
    • ±0.5 dB Max. (1.0 to 2.0 GHz) - Measured ±0.31 dB
    • ±0.3 dB Max. (2.0 to 8.0 GHz) - Measured ±0.17 dB
    • ±0.5 dB Max. (8.0 to 18.0 GHz) - Measured ±0.42 dB
    • ±1.2 dB Max. (18.0 to 20.0 GHz) - Measured ±0.55 dB
  • Phase Balance:
    • 3° Max. (1.0 to 2.0 GHz) - Measured 1.24°
    • 4° Max. (2.0 to 8.0 GHz) - Measured 3.76°
    • 10° Max. (8.0 to 18.0 GHz) - Measured 9.11°
    • 15° Typ. (18.0 to 20.0 GHz)

PMI Website Link,

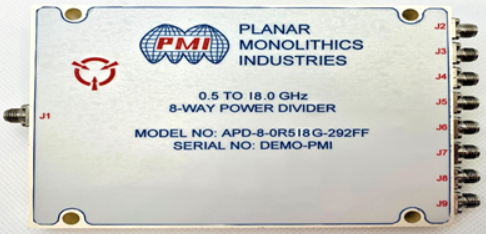

14.0 PMI Model No. APD-8-0R518G-292FF, 0.5 to 18.0 GHz, 8-Way Power Divider



PMI Model No. APD-8-0R518G-292FF is a 8-Way Power Divider that operates over the 0.5 to 18.0 GHz frequency range. It has a maximum insertion loss of 3.2 dB and a typical isolation of 20 dB. The unit is supplied in a housing measuring 5.00" x 3.70" x 0.43" and has 2.92 mm female connectors.

  • Frequency Range: 0.5 to 18.0 GHz
  • Insertion Loss:
    • 2.0 dB Max. (0.5 to 1.0 GHz) - Measured 1.77 dB
    • 2.0 dB Max. (1.0 to 2.0 GHz) - Measured 1.69 dB
    • 2.0 dB Max. (2.0 to 8.0 GHz) - Measured 1.85 dB
    • 3.2 dB Max. (8.0 to 18.0 GHz) - Measured 3.00 dB
  • Insertion Loss Flatness (Ref Line of Best Fit):
    • ±1 dB Max. (0.5 to 18.0 GHz) - Measured ±0.79 dB
    • ±1 dB Max. (1.0 to 18.0 GHz) - Measured ±0.79 dB
    • ±1 dB Max. (2.0 to 18.0 GHz) - Measured ±0.76 dB
  • VSWR Input:
    • 2.5:1 Typ. (0.5 to 1.0 GHz) - Measured 2.41:1
    • 2.6:1 Max. (1.0 to 2.0 GHz) - Measured 2.5:1
    • 2.1:1 Max. (2.0 to 8.0 GHz) - Measured 2.04:1
    • 2.0:1 Max. (8.0 to 18.0 GHz) - Measured 1.99:1
  • VSWR Output:
    • 1.5:1 Max. (0.5 to 1.0 GHz) - Measured 1.37:1
    • 1.5:1 Max. (1.0 to 2.0 GHz) - Measured 1.24:1
    • 1.7:1 Max. (2.0 to 8.0 GHz) - Measured 1.65:1
    • 1.8:1 Max. (8.0 to 18.0 GHz) - Measured 1.7:1
  • Isolation:
    • 10 dB Typ. (0.5 to 1.0 GHz)
    • 10 dB Typ. (1.0 to 2.0 GHz) - Measured 11.21 dB
    • 20 dB Typ. (2.0 to 8.0 GHz)
    • 20 dB Typ. (8.0 to 18.0 GHz)
  • Amplitude Balance:
    • ±0.5 dB Max. (0.5 to 1.0 GHz) - Measured ±0.31 dB
    • ±0.5 dB Max. (1.0 to 2.0 GHz) - Measured ±0.31 dB
    • ±0.3 dB Max. (2.0 to 8.0 GHz) - Measured ±0.17 dB
    • ±0.5 dB Max. (8.0 to 18.0 GHz) - Measured ±0.42 dB
  • Phase Balance:
    • 5° Max. (0.5 to 1.0 GHz) - Measured 4.43°
    • 3° Max. (1.0 to 2.0 GHz) - Measured 1.24°
    • 4° Max. (2.0 to 8.0 GHz) - Measured 3.76°
    • 10° Max. (8.0 to 18.0 GHz) - Measured 9.11°
  • Average Power: 25 W (Into 1.2:1 Load VSWR)

PMI Website Link,

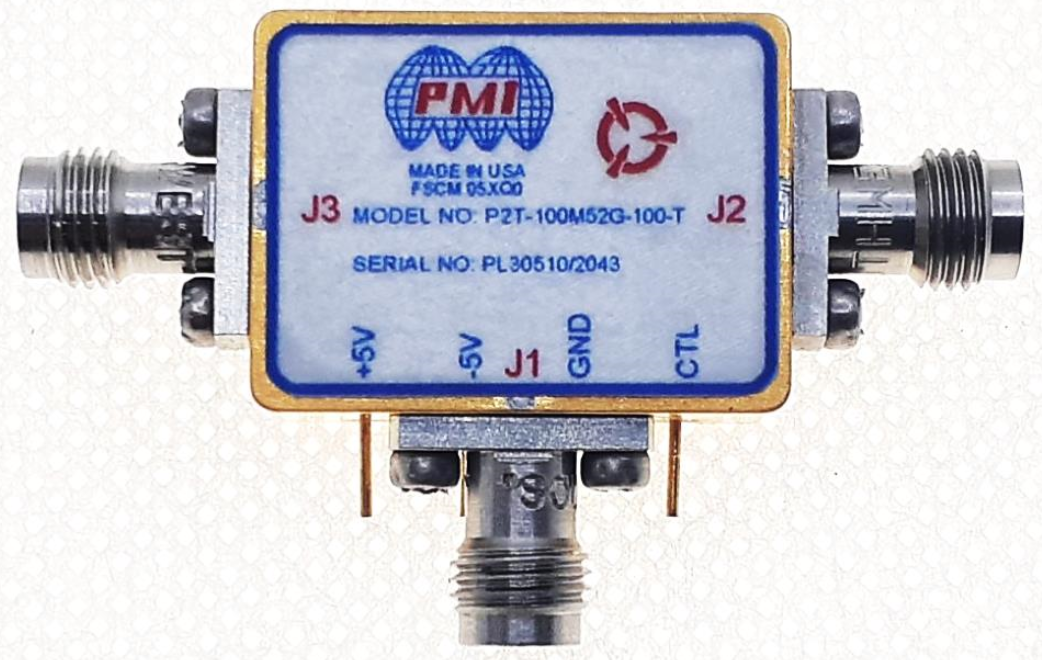

15.0 PMI Model No. P2T-100M52G-100-T, 0.1 to 52.0 GHz, SP2T Absorptive Switch



PMI Model No. P2T-100M52G-100-T is a 0.1 to 52.0 GHz, Single Pole, Two Throw, Absorptive Swtich. It has a typical insertion loss of 6.0 dB and a typical isolation of 100 dB. The housing is measured at 1.00" x 0.75" x 0.40" and has 2.4 mm female connectors.

  • Frequency Range: 0.1 to 52.0 GHz
  • Insertion Loss:
    • 5.0 dB Typ. (0.1 to 18.0 GHz) - Measured 3.02 dB
    • 6.0 dB Typ. (18.0 to 40.0 GHz) - Measured 5.72 dB
    • 9.0 dB Typ. (40.0 to 52.0 GHz) - Measured 8.25 dB
  • VSWR:
    • 2.2:1 Typ. (0.1 to 18.0 GHz)
    • 2.5:1 Typ. (18.0 to 40.0 GHz) - Measured 2.45:1
    • 3.0:1 Typ. (40.0 to 52.0 GHz) - Measured 2.63:1
  • Isolation:
    • 70 dB Typ. (0.1 to 1.0 GHz) - Measured 97.51 dB
    • 100 dB Typ. (1.0 to 18.0 GHz)
    • 100 dB Typ. (18.0 to 40.0 GHz)
    • 80 dB Typ. (40.0 to 52.0 GHz)
  • Video Transients: 800 mV Typ.
  • Amplitude Balance:
    • 0.5 dB Max. (0.1 to 18.0 GHz) - Measured 0.49 dB
    • 0.8 dB Max. (18.0 to 40.0 GHz) - Measured 0.59 dB
    • 1.3 dB Max. (40.0 to 52.0 GHz) - Measured 1.25 dB
  • Phase Balance:
    • 5° Max. (0.1 to 18.0 GHz) - Measured 2.69°
    • 10° Max. (18.0 to 40.0 GHz) - Measured 5.65°
    • 10° Max. (40.0 to 52.0 GHz) - Measured 8.28°
  • Input Power: 20 dBm CW Max.
  • Switching Speed: 50 ns Max. - Measured 4.8 ns Rise Time, 3.6 ns Fall Time, 33.4 ns Speed On, 26.0 ns Speed Off
  • Control Signal:
    • TTL Logic "0" = J1-J2 On
    • TTL Logic "1" = J1-J3 On
  • DC Voltage:
    • +5 V @ 100 mA Max. - Measured 90 mA
    • -5 V @ 100 mA Max. - Measured 80 mA

PMI Website Link,



16.0 PMI Model No. P2T-100M56G-100-T, 0.1 to 56.0 GHz, SP2T Absorptive Switch



PMI Model No. P2T-100M56G-100-T is a 0.1 to 56.0 GHz, Single Pole, Two Throw, Absorptive Switch. It has a maximum insertion loss of 12.0 dB and a typical isolation of 80 dB. It has 2.4 mm female connectors in a housing measured at 1.00" x 0.75" x 0.40".

  • Frequency Range: 0.1 to 56.0 GHz
  • Insertion Loss:
    • 5.0 dB Max. (0.1 to 18.0 GHz) - Measured 3.02 dB
    • 6.0 dB Max. (18.0 to 40.0 GHz) - Measured 5.72 dB
    • 9.0 dB Max. (40.0 to 52.0 GHz) - Measured 8.25 dB
    • 12.0 dB Typ. (52.0 to 56.0 GHz)
  • VSWR:
    • 2.2:1 Typ. (0.1 to 18.0 GHz)
    • 2.5:1 Typ. (18.0 to 40.0 GHz) - Measured 2.45:1
    • 3.0:1 Typ. (40.0 to 52.0 GHz) - Measured 2.63:1
    • 3.0:1 Typ. (52.0 to 56.0 GHz) - Measured 2.09:1
  • Isolation:
    • 70 dB Typ. (0.1 to 1.0 GHz) - Measured 97.93 dB
    • 100 dB Typ. (1.0 to 18.0 GHz)
    • 80 dB Typ. (18.0 to 40.0 GHz)
    • 80 dB Typ. (40.0 to 52.0 GHz)
    • 80 dB Typ. (52.0 to 56.0 GHz)
  • Input Power: 20 dBm CW Max.
  • Video Transients: 800 mV Typ.
  • Amplitude Balance:
    • 0.5 dB Max. (0.1 to 18.0 GHz) - Measured 0.49 dB
    • 0.8 dB Max. (18.0 to 40.0 GHz) - Measured 0.59 dB
    • 1.3 dB Max. (40.0 to 52.0 GHz) - Measured 1.25 dB
    • 1.3 dB Max. (52.0 to 56.0 GHz) - Measured 0.64 dB
  • Phase Balance:
    • 5° Max. (0.1 to 18.0 GHz) - Measured 2.69°
    • 10° Max. (18.0 to 40.0 GHz) - Measured 5.65°
    • 10° Max. (40.0 to 52.0 GHz) - Measured 8.28°
    • 15° Max. (52.0 to 56.0 GHz) - Measured 10.84°
  • Switching Speed: 50 ns Max. - Measured 4.8 ns Rise Time, 3.6 ns Fall Time, 33.4 ns Speed On, 26.0 ns Speed Off
  • Control Signal:
    • TTL Logic "0" = J1-J2 On
    • TTL Logic "1" = J1-J3 On
  • DC Voltage:
    • +5 V @ 100 mA Max. - Measured 90 mA
    • -5 V @ 100 mA Max. - Measured 80 mA

PMI Website Link,



17.0 PMI Model No. P4T-100M50G-100-T-RD, 0.1 to 50.0 GHz, SP4T Absorptive Switch



PMI Model No. P4T-100M50G-100-T-RD is a 0.1 to 50.0 GHz, Single Pole, Four Throw, Absorptive Switch. It has a maximum insertion loss of 10.0 dB and a minimum isolation of 70 dB. It has 2.4 mm female connectors in a housing measured at 1.25" x 1.25" x 0.40".

  • Frequency Range: 0.1 to 50.0 GHz
  • Insertion Loss:
    • 5.0 dB Max. (0.1 to 18.0 GHz) - Measured 2.94 dB
    • 7.0 dB Max. (18.0 to 40.0 GHz) - Measured 5.59 dB
    • 10.0 dB Max. (40.0 to 50.0 GHz) - Measured 9.29 dB
  • VSWR & Input/Output and Termination:
    • 2.0:1 Typ. (0.1 to 16.0 GHz)
    • 2.5:1 Typ. (16.0 to 40.0 GHz)
    • 2.5:1 Typ. (40.0 to 50.0 GHz)
  • Isolation:
    • 100 dB Min. (0.1 to 1.0 GHz) - Measured 105.85 dB
    • 90 dB Min. (1.0 to 18.0 GHz) - Measured 106.29 dB
    • 70 dB Min. (18.0 to 40.0 GHz) - Measured 74.42 dB
    • 70 dB Min. (40.0 to 50.0 GHz) - Measured 76.88 dB
  • Input Power: +20 dBm CW Max.
  • Switching Speed: 50 ns Max. - Measured 8.25 ns Rise Time, 4.32 ns Fall Time, 35.95 ns Speed On, 29.66 ns Speed Off
  • Video Transients: 1 V Peak to Peak Typ.
  • Amplitude Balance:
    • ±0.5 dB Max. (0.1 to 18.0 GHz) - Measured ±0.24 dB
    • ±1.0 dB Max. (18.0 to 40.0 GHz) - Measured ±0.70 dB
    • ±1.2 dB Max. (40.0 to 50.0 GHz) - Measured ±1.05 dB
  • Phase Balance:
    • ±8° Typ. (0.1 to 18.0 GHz)
    • ±15° Typ. (18.0 to 40.0 GHz)
    • ±20° Typ. (40.0 to 50.0 GHz)
  • DC Voltage:
    • +5 V @ 200 mA Max. - Measured 158 mA
    • -5 V @ 200 mA Max. - Measured 128 mA

PMI Website Link,



18.0 PMI Model No. P4T-100M53G-100-T-RD, 0.1 to 53.0 GHz, SP4T Absorptive Switch



PMI Model No. P4T-100M53G-100-T-RD is a 0.1 to 53.0 GHz, Single Pole, Four Throw, Absorptive Switch. It has a maximum insertion loss of 15.0 dB and a minimum isolation of 70 dB. It has 2.4 mm female connectors in a housing measured at 1.25" x 1.25" x 0.40".

  • Frequency Range: 0.1 to 53.0 GHz
  • Insertion Loss:
    • 5.0 dB Max. (0.1 to 18.0 GHz) - Measured 2.94 dB
    • 7.0 dB Max. (18.0 to 40.0 GHz) - Measured 5.59 dB
    • 10.0 dB Max. (40.0 to 50.0 GHz) - Measured 9.29 dB
    • 15.0 dB Max. (50.0 to 53.0 GHz)
  • VSWR & Input/Output and Termination:
    • 2.0:1 Typ. (0.1 to 16.0 GHz)
    • 2.5:1 Typ. (16.0 to 40.0 GHz)
    • 2.5:1 Typ. (40.0 to 50.0 GHz)
    • 2.5:1 Typ. (50.0 to 53.0 GHz)
  • Isolation:
    • 100 dB Min. (0.1 to 1.0 GHz) - Measured 105.85 dB
    • 90 dB Min. (1.0 to 18.0 GHz) - Measured 106.29 dB
    • 70 dB Min. (18.0 to 40.0 GHz) - Measured 74.42 dB
    • 70 dB Min. (40.0 to 50.0 GHz) - Measured 76.88 dB
    • 70 dB Min. (50.0 to 53.0 GHz) - Measured 72.65 dB
  • Input Power: +20 dBm CW Max.
  • Switching Speed: 50 ns Max. - Measured 8.25 ns Rise Time, 4.32 ns Fall Time, 35.95 ns Speed On, 29.66 ns Speed Off
  • Video Transients: 1 V Peak to Peak Typ.
  • Amplitude Balance:
    • ±0.5 dB Max. (0.1 to 18.0 GHz) - Measured ±0.24 dB
    • ±1.0 dB Max. (18.0 to 40.0 GHz) - Measured ±0.73 dB
    • ±1.2 dB Max. (40.0 to 50.0 GHz) - Measured ±1.05 dB
    • ±2.0 dB Typ. (50.0 to 53.0 GHz)
  • Phase Balance:
    • ±8° Typ. (0.1 to 18.0 GHz)
    • ±15° Typ. (18.0 to 40.0 GHz)
    • ±20° Typ. (40.0 to 50.0 GHz)
    • ±20° Typ. (50.0 to 530.0 GHz)
  • DC Voltage:
    • +5 V @ 200 mA Max. - Measured 158 mA
    • -5 V @ 200 mA Max. - Measured 128 mA

PMI Website Link,



19.0 PMI Model No. PEC-100M20D1G-20LM-SFF, 0.1 to 20.1 GHz, Limiting Amplifier



PMI Model No. PEC-100M20D1G-20LM-SFF is a 0.1 to 20.1 GHz, Limiting Amplifier. It has a maximum noise figure of 9 dB and a maximum VSWR of 2.2:1. It has 2.92 mm male connectors in a housing measured at 1.91" x 0.70" x 0.36".

  • Frequency Range: 0.1 to 20.1 GHz
  • RF Input Power Range (Limiting): -12 to +16 dBm
  • Max Input Power (Survival): +22 dBm
  • Harmonics:
    • 2nd: -10 dBc Max.
    • 3rd: -8 dBc Max.
    • (Within Limiting Range)
  • Noise Figure:
    • <6 dB Above 1.0 GHz - Measured 4.98 dB
    • <9 dB Below 1.0 GHz - Measured 6.85 dB
  • Output Power: +19 dBm Min., +24 dBm Max. - Measured 19.75 dBm Min., 23.69 dBm Max.
  • Output Power Flatness: ±2 dBm Typ., ±2.5 dBm Max. - Measured ±1.97 dBm
  • VSWR In/Out: 2.2:1 Max. - Measured 1.72:1/2.18:1
  • DC Power: +12 V @ 500 mA Max. (No RF Input Signal) - Measured 448 mA

PMI Website Link,



20.0 PMI Model No. PEC-100M16G-17LM-SFF, 0.1 to 16.0 GHz, Limiting Amplifier



PMI Model No. PEC-100M16G-17LM-SFF is a 0.1 to 16.0 GHz, Limiting Amplifier. It has a maximum noise figure of 9 dB and a maximum VSWR of 2.2:1. It is supplied in a housing measured at 1.91" x 0.70" x 0.36".

  • Frequency Range: 0.1 to 16.0 GHz
  • RF Input Power Range (Limiting): -12 to +16 dBm
  • Max Input Power (Survival): +22 dBm
  • Harmonics:
    • 2nd: -10 dBc Max.
    • 3rd: -8 dBc Max.
    • (Within Limiting Range)
  • Noise Figure:
    • <6 dB Above 1.0 GHz - Measured 4.8 dB
    • <9 dB Below 1.0 GHz - Measured 6.64 dB
  • Output Power: +16 dBm Min., +21 dBm Max. - Measured 16.26 dBm Min., 20.2 dBm Max.
  • Output Power Flatness: ±2 dBm Max. - Measured ±1.97 dBm
  • VSWR: 2.2:1 Max. - Measured 1.63:1/1.67:1
  • DC Power: +12 V @ 500 mA Max. (No RF Input Signal) - Measured 452 mA

PMI Website Link,

DC to 50 GHz Components, Modules, and Sub-Systems

PMI offers just about any RF/Microwave component, module, or sub-system for both industrial and military based requirements.  Please click on the product types below to be directed to our web site catalog.  Components and modules can be modified to meet your exact requirement.
