1.0 PMI Model No. PEC2-1R8G6R2G-17DBM-LM-SFF, 1.8 to 6.2 GHz, Limiting Amplifier
PMI Model No. PEC2-1R8G6R2G-17DBM-LM-SFF is a Limiting Amplifier that operates over the 1.8 to 6.2 GHz frequency range. It has a maximum noise figure of 6 dB and a maximum VSWR of 2.0:1. This model is outfitted with SMA female connectors in a housing measuring 3.22" x 0.90" x 0.36".
-
Frequency Range: 1.8 to 6.2 GHz
-
Input Power: -67 to +10 dBm CW
-
Saturated Output Power: +12 to +17 dBm Nominal
-
Noise Figure: 6 dB Max. - Measured 4.14 dB
-
2nd Harmonic Rejection: -12 dBc Max.
-
VSWR In/Out: 2.0:1 Max. - Measured 1.29:1/1.15:1
-
DC Voltage Supply: +12 VDC
-
DC Current Draw: 650 mA Max. - Measured 580 mA

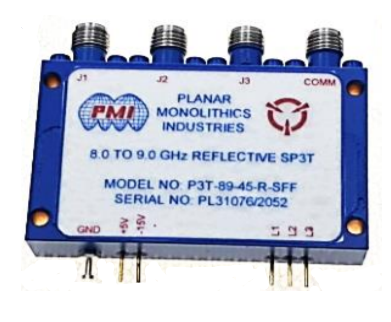

1.0 PMI Model No. P3T-89-45-R-SFF, 8.0 to 9.0 GHz, SP3T Reflective Switch
PMI Model No. P3T-89-45-R-SFF is a Single Pole, Three Throw, Reflective Switch that operates over the 8.0 to 9.0 GHz frequency range. It has a maximum insertion loss of 2.7 dB and a minimum isolation of 45 dB. This model is outfitted with SMA female connectors in a housing measuring 2.00" x 1.25" x 0.40".
-
Frequency Range: 8.0 to 9.0 GHz
-
Insertion Loss: 2.5 dB Typ., 2.7 dB Max.
-
Isolation: 45 dB Min. - Measured 46 dB
-
VSWR: 1.8:1 Max. - Measured 1.34:1/1.44:1
-
Switching Speed: 100 ns Max. - Measured 83 ns Speed On, 98 ns Speed Off, 70 ns Rise Time, 43 ns Fall Time
-
Amplitude Balance: ±0.25 dB Max. - Measured ±0.18 dB
-
Insertion Loss Flatness: ±0.2 dB Max. - Measured ±0.15 dB
-
Video Transients: 1 mV Peak to Peak Max.
-
Power Handling:
-
10 W CW Min.
-
57 dBm Peak @ 1 us Pulse Width, 1% Duty Cycle
-
+5 V @ 85 mA - Measured 75 mA
-
-15 V @ 75 mA - Measured 0 mA

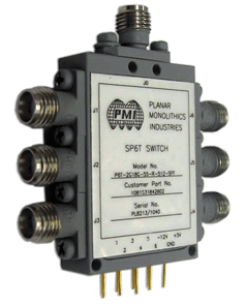

2.0 PMI Model No. P6T-2G18G-55-R-512-SFF, 2.0 to 18.0 GHz, SP6T Reflective Switch
PMI Model No. P6T-2G18G-55-R-512-SFF is a Single Pole, Six Throw, Reflective Switch that operates over the 2.0 to 18.0 GHz frequency range. It has a maximum insertion loss of 7 dB and a minimum isolation of 55 dB. This model is outfitted with SMA female connectors in a housing measuring 1.00" x 1.40" x 0.30".
-
Frequency Range: 2.0 to 18.0 GHz
-
Insertion Loss: 7 dB Max. - Measured 5.6 dB
-
Input Power: 10 dBm CW Max.
-
RF Power Survival: 25 dBm
-
VSWR In/Out: 2.0:1 Max. - Measured 1.87:1/1.89:1
-
Isolation: 55 dB Min. - Measured 67.4 dB
-
Switching Speed: 15 ns Max.
-
Video Transients: 15 mV PP
-
Video Transients Spectral Content: 65 dBm
-
DC Voltage:
-
+5 VDC @ 200 mA Typ. - Measured 96 mA
-
-12 VDC @ 60 mA Typ. - Measured 8 mA

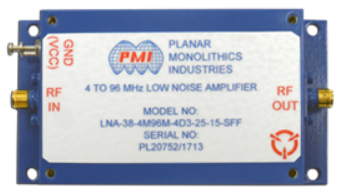

3.0 PMI Model No. LNA-38-4M96M-4D3-25-15-SFF, 4 to 96 MHz, Low Noise Amplifier
PMI Model No. LNA-38-4M96M-4D3-25-15-SFF is a Low Noise Amplifier that operates over the 4 to 96 MHz frequency range. It has a typical gain of 40 dB and a maximum noise figure of 4.3 dB. This model is outfitted with SMA female connectors in a housing measuring 3.750" x 2.000" x 0.813".
-
Frequency Range: 4 to 96 MHz
-
Gain: 38 dB Min., 40 dB Typ. - Measured 41.48 dB
-
RF Input Power: +17 dBm Max.
-
P1dB: +25 dBm Min., +27 dBm Typ.
-
IP3: +40 dBm Typ.
-
Noise Figure: 4.3 dB Max. - Measured 3.54 dB
-
Reverse Isolation: -45 dB Typ.
-
VSWR In/Out: 2.0:1 Max. - Measured 1.39:1
-
DC Supply: +12 to +20 VDC @ 450 mA Max. - Measured 407 mA

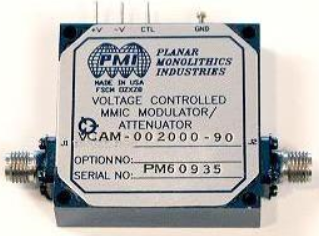

4.0 PMI Model No. VCAM-002000-90, 1.1 to 1.7 GHz, Voltage Controlled MMIC Modulator/Attenuator
PMI Model No. VCAM-002000-90 is a Voltage Controlled MMIC Modulator/Attenuator that operates over the 1.1 to 1.7 GHz frequency range. It has a VSWR of 2.0:1 and a maximum insertion loss of 7 dB. This model is outfitted with SMA female connectors in a housing measuring 1.5" x 1.5" x 0.4".
-
Frequency Range: 1.1 to 1.7 GHz
-
RF Input VSWR: 2.0:1
-
RF Output VSWR: 2.0:1
-
Insertion Loss: 7 dB Max. - Measured 3.18 dB
-
Isolation (Maximum Attenuation): 80 dB Min., 90 dB Typ. - Measured 92 dB
-
Pulse Rise Time: 50 ns Typ., 100 ns Max. - Measured 12 ns
-
Pulse Fall Time: 50 ns Typ., 100 ns Max. - Measured 16 ns
-
DC Power:
-
+9 to +15 V @ 25 mA
-
-9 to -15 V @ 25 mA

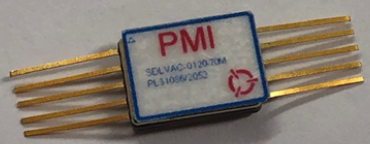

5.0 PMI Model No. SDLVAC-0120-70M, 0.1 to 2.0 GHz, SDLVA
PMI Model No. SDLVAC-0120-70M is a 0.1 to 2.0 GHz, SDLVA. It has a minimum dynamic range of 65 dB and a maximum input VSWR of 1.8:1. It is outfitted with pins in a housing measured at 0.395" x 0.280" x 0.090".
-
Frequency Range: 0.1 to 2.0 GHz
-
Dynamic Range: 65 dB Min.
-
Log Linearity:
-
±1.2 dB Max. (-60 to 0 dBm), ±0.8 dB Typ. - Measured ±0.70 dB
-
±1.5 dB Max. (-65 to +5 dBm), ±1.2 dB Typ. - Measured ±1.07 dB
-
Minimum Logging Range: -60 dBm (-65 dBm Typ.)
-
Maximum Logging Range: +5 dBm (+8 dBm Typ.)
-
VSWR Input: 1.8:1 Max. (1.5:1 Typ.) - Measured 1.19:1
-
Tangential Sensitivity: -65 dBm Min. (-70 dBm Typ.)
-
Limited IF Output: -16 dBm Typ.
-
Maximum RF Input Power: +10 dBm
-
Log Video Output:
-
Output Coupling: DC
-
Maximum Output Voltage: 2.7 V
-
Rise Time: 25 ns Max. (15 ns Typ.) - Measured 11 ns
-
Fall Time: 30 ns Typ. - Measured 13 ns
-
Settling Time: 40 ns Max. - Measured 36 ns
-
DC Offset: Externally Adjustable
-
Slope: Externally Adjustable to 30 mV/dB Typ.
-
Log Slope Variation with Frequency: ±0.5 mV/dB Typ. (Over 80 MHz RF Bandwidth)
-
Log Slope Variation with Temperature: ±1 mV Typ.
-
Propagation Delay: 10 ns Max., 7 ns Typ.
-
Video Load: 100 Ohms Min.
-
DC Power Supply (Regulated to 0.1%):
-
+5 V @ 30 mA (No Video Load) - Measured 26 mA
-
-5 V @ 170 mA - Measured 114 mA

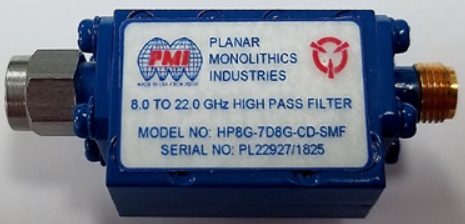

6.0 PMI Model No. HP8G-7D8G-CD-SMF, 8.0 to 22.0 GHz, High Pass Filter
PMI Model No. HP8G-7D8G-CD-SMF is a High Pass Filter that operates over the 8.0 to 22.0 GHz frequency range. It has a maximum insertion loss of 1.5 dB and a maximum VSWR of 2.0:1. This model is outfitted with a SMA male input connector and a SMA female output connector in a housing measuring 1.15" x 0.70" x 0.50".
-
Passband: 8.0 to 22.0 GHz
-
3 dB Cutoff: 7.8 GHz
-
CW Input Power: 5 W Typ., 10 W Max.
-
Impedance: 50 Ohms In/Out
-
Passband Ripple: 0.5 dB Peak to Peak Max.
-
Passband VSWR: 2.0:1 Max. - Measured 1.9:1
-
Passband Insertion Loss: 1.5 dB Max. - Measured 1.36 dB
-
Rejection @ 7500 MHz: -35 dB Typ.
-
Rejection @ 5600 MHz: -50 dB Min.

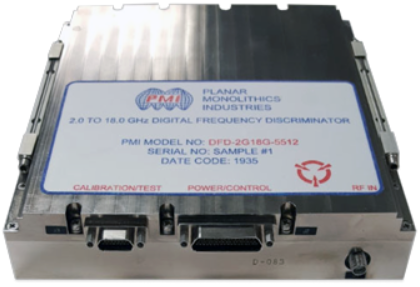

7.0 PMI Model No. DFD-2G18G-5512, 2.0 to 18.0 GHz, Digital Frequency Discriminator
PMI Model No. DFD-2G18G-5512 is a Digital Frequency Discriminator that operates over the 2.0 to 18.0 GHz frequency range. It has a typical input VSWR of 2.0:1 and a maximum RF input power of +17 dBm CW. This model is outfitted with a SMA female connector, a 51-pin Micro-D connector, and a 15-pin Micro-D connector in a housing measuring 5.98" x 5.79" x 1.28".
-
Frequency Range: 2.0 to 18.0 GHz
-
Unambiguous Bandwidth: 16.0 GHz Min.
-
VSWR: 2.5:1 Typ.
-
Dynamic Range: -50 to +15 dBm
-
Mean Frequency Resolution: 1 MHz Nominal
-
Frequency Accuracy: 4.5 MHz (Average) Typ.
-
Peak Frequency Error: 15 MHz Max.
-
Maximum RF Input Power: +17 dBm CW
-
Throughput Time: Less than 350 ns Typ.
-
Recovery Time (After High Power Pulse Input): 100 ns Max. - Measured 90 ns
-
Shadow Time: 50 ns Typ.
-
Minimum Pulse Width: 100 ns Typ.
-
Power Consumption:
-
-5 VDC @ 100 mA Typ. - Measured 30 mA
-
+5 VDC @ 1.5 A Typ. - Measured 1480 mA
-
+12 VDC @ 800 mA Typ.

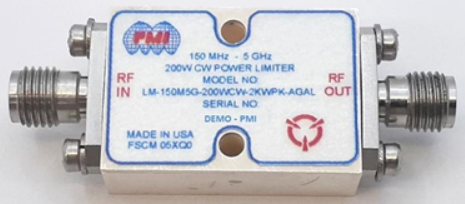

8.0 PMI Model No. LM-150M5G-200CW-2KWPK-AGAL, 0.15 to 5.0 GHz, Limiter
PMI Model No. LM-150M5G-200CW-2KWPK-AGAL is a Limiter that operates over the 0.15 to 5.0 GHz frequency range. It has a maximum insertion loss of 2.0 dB and a maximum recovery time of 100 ns. This model is outfitted with SMA female connectors in a housing measuring 1.00" x 0.68" x 0.35".
-
Frequency Range: 0.15 to 5.0 GHz
-
Power Handling:
-
200 W CW (+53 dBm) Typ.
-
2 kW Peak Power (+63 dBm) Typ.
-
(25 us PW, 5% Duty Cycle)
-
2.0 dB Max. (0.15 to 0.3 GHz)
-
1.5 dB Max. (0.3 to 5.0 GHz) - Measured 1.17 dB
-
VSWR In/Out: 1.7:1 Max. - Measured 1.66:1/1.67:1
-
Flat Leakage Power: +20 dBm Typ.
-
P1dB: +6 dBm Min.
-
Recovery Time: 100 ns Max. - Measured 33.11 ns
9.0 PMI Model No. DBMX-4G12G-19-8D5-SFF, 4.0 to 12.0 GHz, Double Balanced Mixer
PMI Model No. DBMX-4G12G-19-8D5-SFF is a Double Balanced Mixer that operates over the 4.0 to 12.0 GHz frequency range. It has a minimum isolation of 19 dB and a maximum noise figure of 8.5 dB. This model is outfitted with SMA female connectors in a housing measuring 1.000" x 0.725" x 0.510".
-
F1: 870 MHz (I Port)
-
P1 = +5 dBm
-
F2 = 9.77 to 10.27 GHz (L Port)
-
P2 = +12 dBm
-
Output Frequency: 8.9 to 9.4 GHz (R Port)
-
Frequency Range: 4.0 to 12.0 GHz
-
Conversion Loss: 8.5 dB (I to R) - Measured 7.04 dB
-
Isolation:
-
19 dB (L to R) - Measured 38.97 dB
-
30 dB (L to I) - Measured 62.60 dB
-
27 dB (I to R) - Measured 39.27 dB
-
Noise Figure: 8.5 dB Max.
-
Nominal Impedance: 50 Ohms
-
RF Input Power: 200 mW Max. @ +25°C
-
Input Current: 100 mADC Peak

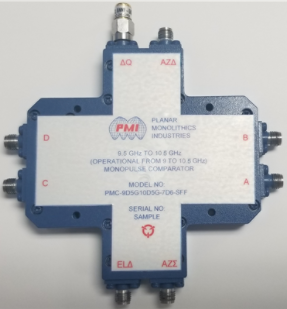

10.0 PMI Model No. PMC-9D5G10D5G-7D6-SFF, 9.5 to 10.5 GHz, Monopulse Comparator
PMI Model No. PMC-9D5G10D5G-7D6-SFF is a Monopulse Comparator that operates over the 9.5 to 10.5 GHz frequency range. It has a maximum insertion loss of 7.6 dB and a minimum isolation of 20 dB. This model is outfitted with SMA female connectors in a housing measuring 3.48" x 3.48" x 0.43".
-
Frequency Range: 9.5 to 10.5 GHz
-
Insertion Loss: 7.6 dB Max.
-
Amplitude Balance: ±0.5 dB Max. - Measured ±0.4 dB
-
Phase Balance: ±5° Max. - Measured ±3.8°
-
Isolation: 20 dB Min. - Measured 23 dB
-
VSWR: 1.5:1 Max. - Measured 1.3:1
-
Power Handling:
-
Average: 10 W Max. (Port A, B, C, & D)
-
Peak: 0.1 kW Max.

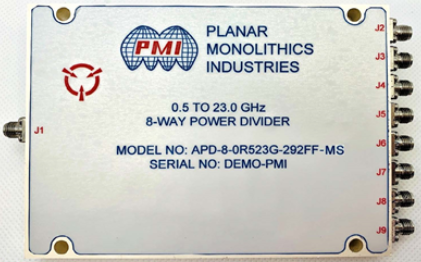

11.0 PMI Model No. APD-8-0R523G-292FF-MS, 0.5 to 23.0 GHz, 8-Way Power Divider
PMI Model No. APD-8-0R523G-292FF-MS is an 8-Way Power Divider that operates over the 0.5 to 23.0 GHz frequency range. It has a maximum insertion loss of 8.0 dB and a typical isolation of 15 dB. This model is outfitted with 2.92 female connectors in a housing measuring 5.00" x 3.70" x 0.43".
-
Frequency Range: 0.5 to 23.0 GHz
-
Insertion Loss (Over Theoretical Power Split of 9 dB):
-
2.0 dB Max. (0.5 to 1.0 GHz) - Measured 1.33 dB
-
2.2 dB Max. (1.0 to 2.0 GHz) - Measured 1.75 dB
-
2.5 dB Max. (2.0 to 8.0 GHz) - Measured 2.35 dB
-
5.2 dB Max. (8.0 to 18.0 GHz) - Measured 4.71 dB
-
6.5 dB Max. (18.0 to 22.0 GHz) - Measured 6.32 dB
-
8.0 dB Typ. (22.0 to 23.0 GHz) - Measured 7.96 dB
-
Insertion Loss Flatness (Ref Line of Best Fit):
-
±1 dB Max. (0.5 to 20.0 GHz)
-
±1 dB Max. (1.0 to 20.0 GHz)
-
±1 dB Max. (2.0 to 20.0 GHz)
-
±1 dB Max. (0.5 to 18.0 GHz)
-
±1 dB Max. (1.0 to 18.0 GHz)
-
±1 dB Max. (2.0 to 18.0 GHz)
-
±2.2 dB Max. (20.0 to 23.0 GHz)
-
2.5:1 Typ. (0.5 to 1.0 GHz) - Measured 2.27:1
-
2.6:1 Max. (1.0 to 2.0 GHz) - Measured 2.57:1
-
2.1:1 Max. (2.0 to 8.0 GHz) - Measured 1.85:1
-
2.0:1 Typ. (8.0 to 18.0 GHz)
-
2.1:1 Typ. (18.0 to 22.0 GHz)
-
2.2:1 Typ. (22.0 to 23.0 GHz)
-
1.5:1 Max. (0.5 to 1.0 GHz) - Measured 1.29:1
-
1.5:1 Max. (1.0 to 2.0 GHz) - Measured 1.32:1
-
1.7:1 Typ. (2.0 to 8.0 GHz)
-
1.8:1 Typ. (8.0 to 18.0 GHz) - Measured 1.79:1
-
2.0:1 Typ. (18.0 to 22.0 GHz)
-
2.0:1 Typ. (22.0 to 23.0 GHz) - Measured 1.95:1
-
10 dB Typ. (0.5 to 1.0 GHz)
-
10 dB Typ. (1.0 to 2.0 GHz)
-
20 dB Typ. (2.0 to 8.0 GHz)
-
20 dB Typ. (8.0 to 18.0 GHz)
-
15 dB Typ. (18.0 to 22.0 GHz)
-
10 dB Typ. (22.0 to 23.0 GHz)
-
±0.5 dB Max. (0.5 to 1.0 GHz) - Measured ±0.11 dB
-
±0.5 dB Max. (1.0 to 2.0 GHz) - Measured ±0.12 dB
-
±0.5 dB Max. (2.0 to 8.0 GHz) - Measured ±0.38 dB
-
±1.2 dB Max. (8.0 to 18.0 GHz) - Measured ±0.98 dB
-
±1.8 dB Max. (18.0 to 22.0 GHz) - Measured ±1.42 dB
-
±2.0 dB Max. (22.0 to 23.0 GHz) - Measured ±1.85 dB
-
±3° Max. (0.5 to 1.0 GHz) - Measured +0.81°/-1.09°
-
±3° Max. (1.0 to 2.0 GHz) - Measured +0.99°/-1.02°
-
±4° Max. (2.0 to 8.0 GHz) - Measured +2.91°/-2.37°
-
±10° Max. (8.0 to 18.0 GHz) - Measured +5.26°/-5.19°
-
±15° Max. (18.0 to 22.0 GHz) - Measured +9.11°/-8.54°
-
±20° Max. (22.0 to 23.0 GHz) - Measured +15.39°/-9.06°
-
Average Power: 25 W (Into 1.2:1 Load VSWR)
https://www.pmi-rf.com/product-details/apd-8-0r523g-292ff-ms

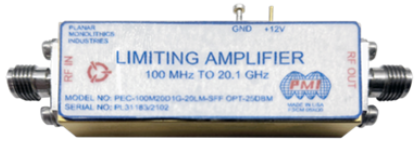

12.0 PMI Model No. PEC-100M20D1G-20LM-SFF OPT-25DBM, 0.1 to 20.1 GHz, Limiting Amplifier
PMI Model No. PEC-100M20D1G-20LM-SFF OPT-25DBM is a Limiting Amplifier that operates over the 0.1 to 20.1 GHz frequency range. It has a maximum insertion loss of 9.0 dB and a max input power of +22 dBm. This model is outfitted with SMA female connectors in a housing measuring 1.91" x 0.70" x 0.36".
-
Frequency Range: 0.1 to 20.1 GHz
-
RF Input Power Range (Limiting): -25 to +16 dBm
-
Max Input Power (Survival): +22 dBm
-
Harmonics:
-
2nd: -8 dBc Max.
-
3rd: -8 dBc Max.
-
(Within Limiting Range)
-
Noise Figure: <6 dB Above 1.0 GHz, <9 dB Below 1.0 GHz - Measured 4.98 dB Above 1.0 GHz, 6.85 dB Below 1.0 GHz
-
Output Power: +17 dBm Min., +24 dBm Max.
-
Output Power Flatness: ±3 dBm Typ., ±3.5 dBm Max. - Measured ±1.97 dBm
-
VSWR In/Out: 2.2:1 Max. - Measured 1.72:1/2.18:1
-
DC Power: +12 V @ 500 mA Max. (No RF Input Signal)

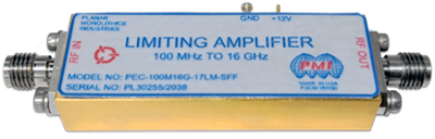

13.0 PMI Model No. PEC-100M16G-17LM-SFF, 0.1 to 16.0 GHz, Limiting Amplifier
PMI Model No. PEC-100M16G-17LM-SFF is a Limiting Amplifier that operates over the 0.1 to 16.0 GHz frequency range. It has a maximum insertion loss of 9.0 dB and a max input power of +22 dBm. This model is outfitted with SMA female connectors in a housing measuring 1.91" x 0.70" x 0.36".
-
Frequency Range: 0.1 to 16.0 GHz
-
RF Input Power Range (Limiting): -12 to +16 dBm
-
Max Input Power (Survival): +22 dBm
-
Harmonics:
-
2nd: -10 dBc Max.
-
3rd: -8 dBc Max.
-
(Within Limiting Range)
-
Noise Figure: <6 dB Above 1.0 GHz, <9 dB Below 1.0 GHz - Measured 4.8 dB Above 1.0 GHz, 6.64 dB Below 1.0 GHz
-
Output Power: +16 dBm Min., +21 dBm Max.
-
Output Power Flatness: ±2 dBm Max. - Measured ±1.97 dBm
-
VSWR In/Out: 2.2:1 Max. - Measured 1.63:1/1.67:1
-
DC Power: +12 V @ 500 mA Max. (No RF Input Signal)
|
|
