PMI系列新产品全新登场
|
|
|
PMI Model No. P2T-100M40G-95-T-512-292FF, 0.1 to 40.0 GHz, SP2T Absorptive Switch
· Operating Frequency 0.1 to 40.0 GHz · Isolation of 95 dB · Insertion Loss of 5 dB · VSWR In/Out of 2.0:1 · Input Power of +20 dBm · Switching Speed of 100 ns · DC Voltage of +5 VDC @ 120 mA, -12 VDC @ 65 mA · 2.92 mm female connectors · Housing: 1.00" x 1.00" x 0.50"
PMI Website Link,
|
|
|
PMI Model No. P2T-500M18G-80-T-515-SFF-4W-ST, 0.5 to 18.0 GHz, SP2T Absorptive Switch
· Operating Frequency 0.5 to 18.0 GHz · Isolation of 70 dB · Insertion Loss of 3.5 dB · VSWR In/Out of 2.0:1 · Input Power of 4 W · Input Peak Power of 20 W · Switching Speed of 60 ns · DC Voltage of +5 V @ 150 mA, -15 V @ 150 mA · SMA female connectors · Housing: 1.00" x 1.00" x 0.40"
PMI Website Link,
|
|
|
PMI Model No. P2T-1R2G1R4G-60-T-SFF, 1.2 to 1.4 GHz, SP2T Reflective Switch
· Operating Frequency 1.2 to 1.4 GHz · Impedance of 50 Ohms · Survival Input Power of +30 dBm · Operating Input Power of +20 dBm · Input VSWR of 1.5:1 · Insertion Loss of 1 dB · Isolation of 60 dB · Switching Speed of 100 ns · DC Voltage of +5 VDC @ 100 mA, -15 VDC @ 100 mA · SMA female connectors · Housing: 1.00" x 1.00" x 0.40"
PMI Website Link,
|
|
|

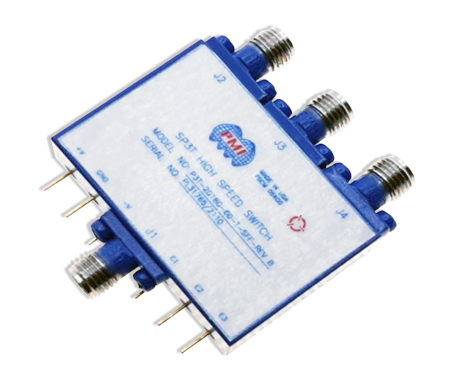

PMI Model No. P3T-2G18G-60-T-SFF Rev. B, 2.0 to 18.0 GHz, SP3T Absorptive Switch
· Operating Frequency 2.0 to 18.0 GHz · Insertion Loss of 3.2 dB · VSWR of 2.0:1 · Input Power of 200 mW · Isolation of 60 dB · Switching Speed of 50 ns · Video Leakage of 20 mV @ 350 MHz · DC Voltage of +5 VDC @ 110 mA, -12 VDC @ 90 mA · SMA female connectors · Housing: 1.50" x 1.00" x 0.50"
PMI Website Link,
|
|
|

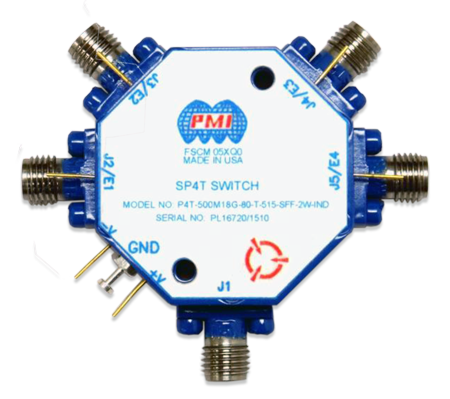

PMI Model No. P4T-500M18G-80-T-515-SFF-2W-IND, 0.5 to 18.0 GHz, SP4T Absorptive Switch
· Operating Frequency 0.5 to 18.0 GHz · Insertion Loss of 4.5 dB · Isolation of 80 dB · VSWR of 2.0:1 · Switching Speed of 200 ns · Operating Power of +33 dBm · DC Supply of +5 VDC, -15 VDC · SMA female connectors · Housing: 1.25" x 1.25" x 0.40"
PMI Website Link,
|
|
|

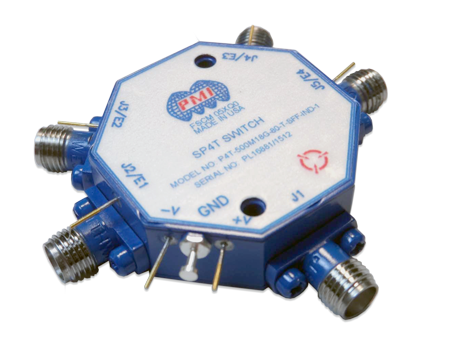

PMI Model No. P4T-500M18G-80-T-SFF-IND-1, 0.5 to 18.0 GHz, SP4T Absorptive Switch
· Operating Frequency 0.5 to 18.0 GHz · Insertion Loss of 3.75 dB · Isolation of 80 dB · VSWR of 2.0:1 · Switching Speed of 25 ns · Input Power of +20 dBm · Survival Power of +23 dBm · Power Supply of +5 V @ 200 mA, -5 V @ 100 mA · SMA female connectors · Housing: 1.25" x 1.25" x 0.40"
PMI Website Link,
|
|
|

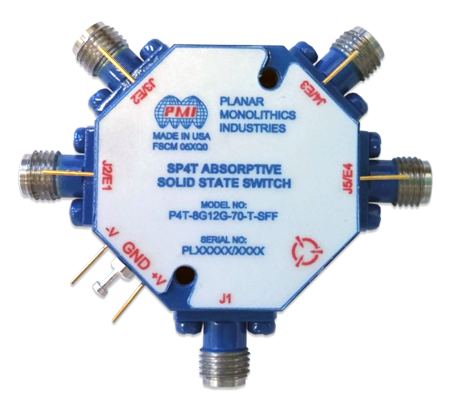

PMI Model No. P4T-8G12G-70-T-SFF, 8.0 to 12.0 GHz, SP4T Absorptive Switch
· Operating Frequency 8.0 to 12.0 GHz · Impedance of 50 Ohms · Input Power of +30 dBm · VSWR of 1.8:1 · Insertion Loss of 2.6 dB · Isolation of 70 dB · Switching Speed of 100 ns · DC Voltage of +5 VDC @ 200 mA, -15 VDC @ 100 mA · SMA female connectors · Housing: 1.25" x 1.25" x 0.40"
PMI Website Link,
|
|
|

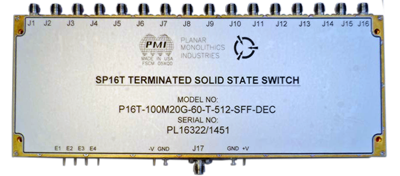

PMI Model No. P16T-100M20G-60-T-512-SFF-DEC, 0.1 to 20.0 GHz, SP16T Absorptive Switch
· Operating Frequency 0.1 to 20.0 GHz · Insertion Loss of 8.5 dB · Isolation of 60 dB · VSWR Input/Output of 2.0:1 · VSWR Output/Off of 2.0:1 · Rise/Fall Time of 50 ns/10 ns · Delay On/Off of 150 ns · Input Power of +20 dBm · Survival Power of 1 W CW · Power Supply of +5 VDC @ 750 mA, -12 VDC @ 200 mA · SMA female connectors · Housing: 8.00" x 3.00" x 0.65"
PMI Website Link,
|
|
|

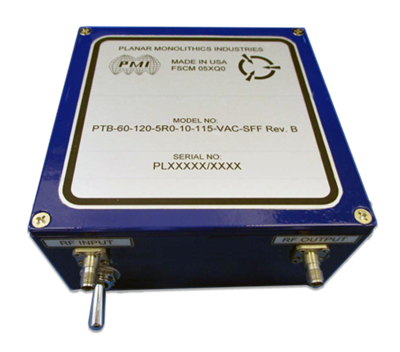

PMI Model No. PTB-60-120-5R0-10-115-VAC-SFF Rev. B, 1.0 to 20.0 GHz, Portable Amplifier
· Operating Frequency 1.0 to 20.0 GHz · Gain of +60 dB · Gain Flatness of ±3.0 dB · Noise Figure of 5.0 dB · OP1dB of +10 dBm · VSWR of 2.0:1 · AC Voltage Supply of 115 VAC, 60 Hz · SMA female connectors · Housing: 4.92" x 4.92" x 2.10"
PMI Website Link,
|
|
|

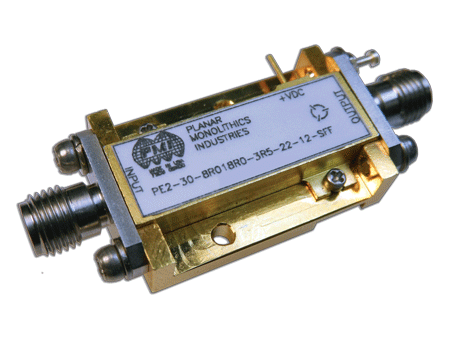

PMI Model No. PE2-30-8R018R0-3R5-22-12-SFF, 8.0 to 18.0 GHz, Low Noise Amplifier
· Operating Frequency 8.0 to 18.0 GHz · Gain of 30 dB · Gain Flatness of ±1.5 dB · Noise Figure of 3.5 dB · OP1dB of +18.5 dBm · VSWR In/Out of 2.0:1 · Power Supply of +12 to +15 VDC @ 325 mA · SMA female connectors · Housing: 1.08" x 0.71" x 0.29"
PMI Website Link,
|
|
|
PMI Model No. FD-160M-100M-1515, 160 MHz, Frequency Discriminator
· Center Frequency 160 MHz · Operating Frequency 110 to 210 MHz · Sensitivity into 50 Ohms of 9.5 to 10 mV/MHz · Linearity @ 25°C of ±3% · Linearity @ 0°C to 60°C of ±5% · Input Dynamic Range of -10 to 0 dBm · Input VSWR of 1.5:1 · Rise Time of 10 ns · DC Power Supply of +15 V @ 400 mA, -15 V @ 400 mA · Video Out vs. Input Frequency of 1 V · SMA female connectors · Housing: 4.63" x 1.50" x 0.47"
PMI Website Link,
|
|
|

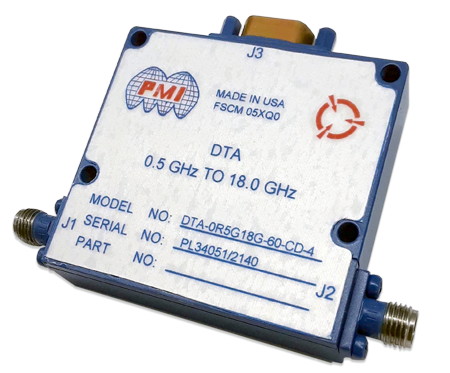

PMI Model No. DTA-0R5G18G-60-CD-4, 0.5 to 18.0 GHz, 10-Bit Programmable Attenuator
· Operating Frequency 0.5 to 18.0 GHz · Mean Attenuation Range of 60 dB · Insertion Loss of 4.8 dB · VSWR of 2.0:1 · Flatness up to ±3.0 dB · Accuracy of Attenuation of ±2.0 dB · Minimum Attenuation Step of 0.06 dB · Operating Power of 15 dBm · Survival Power of 1 W · Switching Time On/Off of 1.0 us/0.5 us · DC Power Supply of +15 V @ 150 mA · SMA female connectors and 15 Pin Micro-D female connector · Housing: 2.00" x 1.80" x 0.40"
PMI Website Link,
|
|
|

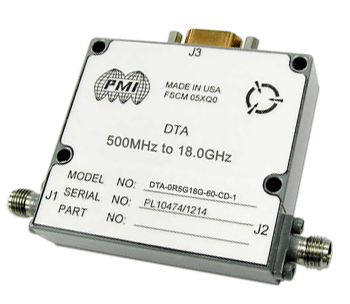

PMI Model No. DTA-0R5G18G-60-CD-1, 0.5 to 18.0 GHz, 10-Bit Programmable Attenuator
· Operating Frequency 0.5 to 18.0 GHz · Mean Attenuation Range of 60 dB · Insertion Loss of 4.8 dB · VSWR of 2.0:1 · Flatness of ±1.25 dB · Accuracy of Attenuation of ±1.5 dB · Minimum Attenuation Step of 0.06 dB · Operating Power of 15 dBm · Survival Power of 1 W · Switching On/Off Time of 1.0 us/0.5 us · DC Power Supply of +15 V @ 150 mA · SMA female connectors · 15-Pin Micro-D female connector · Housing: 2.00" x 1.80" x 0.50"
PMI Website Link,
|
|
|

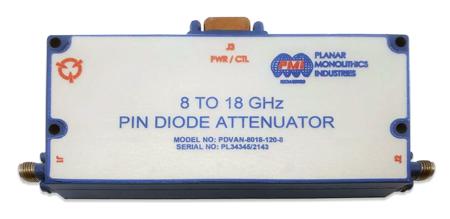

PMI Model No. PDVAN-8018-120-8, 8.0 to 18.0 GHz, 8-Bit Programmable Attenuator
· Operating Frequency 8.0 to 18.0 GHz · Mean Attenuation Range of 120 dB · LSB of 1.0 dB · Insertion Loss of 8 dB · VSWR 2.0:1 · Operating Power Rating of +20 dBm · Survival Power Rating of +30 dBm · Attenuation Flatness of ±1.5 dB · Attenuation of Accuracy of ±1.5 dB · Switching Time of 3 usec · Power Supply of +5.3 V/+6 V @ 700 mA · SMA female connectors and 15-Pin Micro-D female connector · Housing: 4.00" x 1.80" x 0.50"
PMI Website Link,
|
|
|
|
