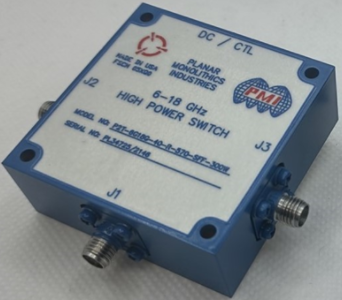

PMI Model No. P2T-6G18G-40-R-570-SFF-300W, 6.0 to 18.0 GHz, SP2T Absorptive Switch
· Operating Frequency 6.0 to 18.0 GHz · Power of 300 W · Duty Cycle of 20% · Insertion Loss of 2.2 dB · Isolation of 40 dB · Pulse Width of 200 ns · Switching Speed of 1.25 us · VSWR In/Out of 2.0:1 · Load VSWR of 1.5:1 · DC Voltage and Current of +5 V @ 300 mA, -70 V @ 60 mA · SMA Female Connectors, 9 Pin Micro-D Female Connector · Housing: 2.00" x 2.00" x 0.75"
PMI Website Link,
|
|
PMI Model No. P2T-12G18G-45-R-SFF-10W, 12.0 to 18.0 GHz, SP2T Reflective Switch
· Operating Frequency 12.0 to 18.0 GHz · Insertion Loss of 1.5 dB · Isolation of 45 dB · VSWR of 2.0:1 · Rise/Fall Time of 20 ns · Delay On/Off of 50 ns · Port to Port Switching of 60 ns · Pulse Width of 1 us · Maximum PRF of 2 MHz · Power Supply of +15 V @ 100 mA, -15 V @ 75 mA · Peak Power of 30 W · Average Power of 10 W · SMA Female Connectors
PMI Website Link,
|
|

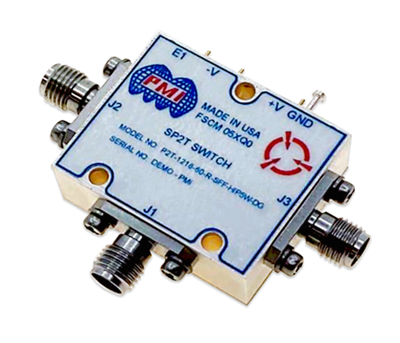

PMI Model No. P2T-1218-60-R-SFF-HIP5W-DG, 12.0 to 18.0 GHz, SP2T Reflective Switch
· Operating Frequency 12.0 to 18.0 GHz · Insertion Loss of 2.5 dB · Isolation of 60 dB · VSWR of 2.0:1 · Rise/Fall Time of 75 ns/25 ns · Delay On/Off Time of 150 ns/100 ns · Operating Input Power of 2 W CW · Survival Input Power of 5 W CW · DC Supply of +5 V @ 200 mA, -28 V @ 20 mA · SMA Female Connectors · Housing: 1.20" x 1.00" x 0.50"
PMI Website Link,
|
|
PMI Model No. P2T-1840-30-R-1W-292FF, 18.0 to 40.0 GHz, SP2T Reflective Switch
· Operating Frequency 18.0 to 40.0 GHz · Insertion Loss of 2.5 dB · Operating Input Power of 1 W · VSWR of 2.0:1 · Isolation of 35 dB · Switching Speed of 100 ns · DC Voltage +12 VDC @ 50 mA, -15 VDC @ 50 mA · 2.92 mm Female Connectors · Housing: 1.00" x 1.20" x 0.40"
PMI Website Link,
|
|
PMI Model No. P8T-0R5G18G-60-T-SFF-PN, 0.5 to 18.0 GHz, SP8T Absorptive Switch
· Operating Frequency 0.5 to 18.0 GHz · Isolation of 55 dB · Insertion Loss of 4.5 dB · VSWR In/Out of 2.0:1 · Operating Input Power of +20 dBm · Switching Speed of 100 ns · DC Voltage and Current of +5 VDC @ 400 mA, -5 VDC @ 100 mA · SMA Female Connectors · Housing: 4.00" x 1.50" x 0.40"
PMI Website Link,
|
|
PMI Model No. PEC-30-0R2520R0-5R0-22-12-SFF, 0.25 to 20.0 GHz, Low Noise Amplifier
· Operating Frequency 0.25 to 20.0 GHz · Gain of 26.5 dB · Gain Flatness of ±1.5 dB · Noise Figure of 5.5 dB · OP1dB of 22 dBm · VSWR In/Out of 1.7:1 · DC Supply of +12 to +15 VDC @ 400 mA · SMA Female Connectors · Housing: 1.08" x 0.71" x 0.32"
PMI Website Link,
|
|

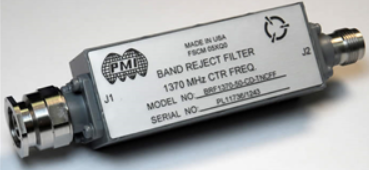

PMI Model No. BRF1370-50-CD-TNCFF, 1370 MHz, Band Reject Filter
· Center Frequency 1370 MHz · Notch Bandwidth of 60 MHz · Notch Depth of 50 dB · Insertion Loss of 2.5 dB · Lower Passband of 800 to 1200 MHz · Upper Passband of 1450 to 1900 MHz · Maximum RF Power of 10 W · TNC Female Connectors · Housing: 2.60" x 1.00" x 0.75"
PMI Website Link,
|
|

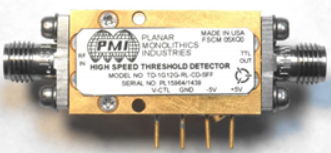

PMI Model No. TD-1G12G-RL-CD-SFF, 1.0 to 12.0 GHz, Threshold Detector
· Operating Frequency 1.0 to 12.0 GHz · VSWR of 3.0:1 · Dynamic Range of -30 to +10 dBm · Threshold Variation of ±1.5 dB · Propagation Delay of 10 ns · Minimum Pulse Width of 50 ns · Temperature Stability of 1.0 dB · Threshold Setting Control of 0 to +5 V · Threshold Level Setting Range -30 to -10 dBm · Input Power of 100 mW · Power Supply of ±5 V @ 100 mA · SMA Female Connectors · Housing: 1.10" x 0.60" x 0.19"
PMI Website Link,
|
|
PMI Model No. PEC-50-0R118-6R5-18-120VAC-1U-SFF, 0.1 to 18.0 GHz, Integrated Microwave Assembly
· Operating Frequency 0.1 to 18.0 GHz · Gain of 50 dB · Gain Flatness of ±2.0 dB · Noise Figure of 6.5 dB · OP1dB of +14 dBm · Attenuation Range of 0 to 60 dB · VSWR In/Out of 2.0:1 · AC Power of 120 VAC, 50/60 Hz · SMA Female Connectors · Housing: 17.67" x 10.06" x 1.73"
PMI Website Link,
|
|

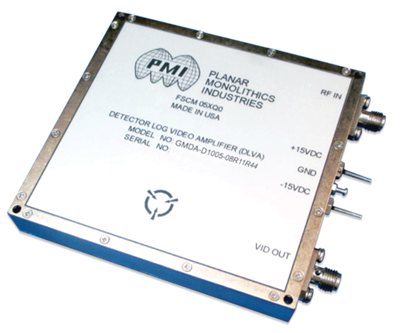

PMI Model No. GMDA-D1005-08R11R44, 0.81 to 1.44 GHz, DLVA
· Operating Frequency 0.81 to 1.44 GHz · Logging Range of -60 to +10 dBm · TSS of -65 dBm · Logging Slope of +25 mV · Logging Linearity of ±1.0 dB · Flatness of 50 mV · RF Safe Input Power of +23 dBm · Max Output Voltage of +2.5 V · Input VSWR of 2.0:1 · Video Rise Time of 30 ns · Recovery Time of 500 ns · Throughput Time of 30 ns · Video Bandwidth of 10 MHz · Offset Voltage of ±50 mV · DC Power Supply of +12 to +15.5 VDC @ 300 mA, -12 to -15.5 VDC @ 150 mA · SMA Female Connectors · Housing: 3.50" x 3.20" x 0.50"
PMI Website Link,
|
|
PMI Model No. APD-2-192212-SFF, 19.2 to 21.2 GHz, 2-Way Power Divider
· Operating Frequency 19.2 to 21.2 GHz · Insertion Loss of 1.0 dB · VSWR of 1.50:1 · Isolation of 20 dB · Amplitude Balance of ±0.2 dB · Phase Balance of ±2° · Power Handling Forward/Reversed of 20 W/1 W · 2.92 mm Female Connectors · Housing: 1.00" x 0.60" x 0.39"
PMI Website Link,
|
|
PMI Model No. APD-8-0R518G-292FF-MS, 0.5 to 18.0 GHz, 8-Way Power Divider
· Operating Frequency 0.5 to 18.0 GHz · Insertion Loss of 2.5 dB · Insertion Loss Flatness of ±1 dB · VSWR In/Out of 2.1:1/1.7:1 · Isolation of 20 dB · Amplitude Balance of ±0.5 dB · Phase Balance of ±4° · Average Power of 25 W · 2.92 mm Female Connectors · Housing: 5.00" x 3.70" x 0.43"
PMI Website Link, https://www.pmi-rf.com/product-details/apd-8-0r518g-292ff-ms
|
|

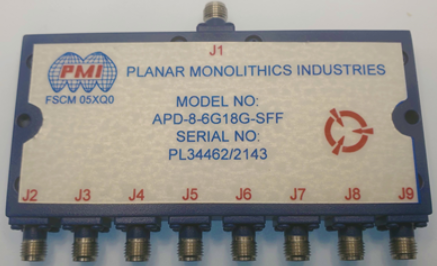

PMI Model No. APD-8-6G18G-SFF, 6.0 to 18.0 GHz, 8-Way Power Divider
· Operating Frequency 6.0 to 18.0 GHz · Insertion Loss of 2.0 dB · Isolation of 18 dB · VSWR of 1.6:1 · Amplitude Balance of ±0.8 dB · Phase Balance of ±8° · Power Handling Forward/Reversed of 20 W/0.5 W · SMA Female Connectors · Housing: 3.75" x 1.77" x 0.39"
PMI Website Link,
|
|

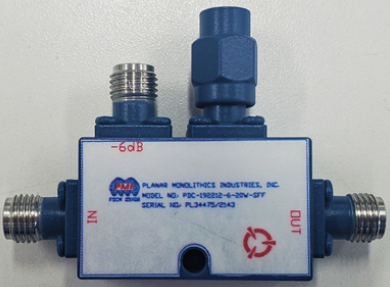

PMI Model No. PDC-192212-6-20W-SFF, 19.2 to 21.2 GHz, Directional Coupler
· Operating Frequency 19.2 to 21.2 GHz · Insertion Loss of 1.7 dB · Coupling Factor 6 dB ± 0.7 dB · Coupling Sensitivity of ±0.8 dB · Directivity of 10 dB · VSWR of 1.6:1 · Power Handling Incident/Reflected of 20 W/1 W · 2.92 mm Female Connectors · Housing: 1.10" x 0.67" x 0.43"
PMI Website Link,
|
|
PMI Model No. PDC-3336-6-20W-SFF, 33.0 to 36.0 GHz, Directional Coupler
· Operating Frequency 33.0 to 36.0 GHz · Insertion Loss of 1.7 dB · Coupling Factor of 6 dB ± 0.7 dB · Coupling Sensitivity of ±0.8 dB · Directivity of 10 dB · VSWR of 1.6:1 · Power Handling Incident/Reflected of 20 W/1 W · 2.92 mm Female Connectors · Housing: 1.10" x 0.67" x 0.43"
