8.7 - 8.9 GHz SMT Circulator, X-Band
Components for Auto Radar Development & Testing Applications
1.477 - 1.489 GHz Drop-In Isolator, L-Band
35 GHz Dual Channel Receiver & Transmitter
Waveguide Isolators & Circulators
|
|
|
|
|
|
For use in modern radars in the civil, military and government sectors, Renaissance has designed this X-Band surface mount circulator. Operating at 8.7 – 8.9 GHz, this circulator supports applications such as weather monitoring, air traffic control, defense tracking and vehicle speed detection
|
|
|
|
|
HXI has provided a number of customers with components and subassemblies in the 76 to 81 GHz range in support of the development and testing of automotive radar IC’s and modules. Among the components are integrated mixer/LO multipliers, LNA’s, power amplifiers, switches, isolators and 4-way power splitters. Both WR-12 and WR-10 waveguide sizes are supported for this hardware.
|
|
|
|
|

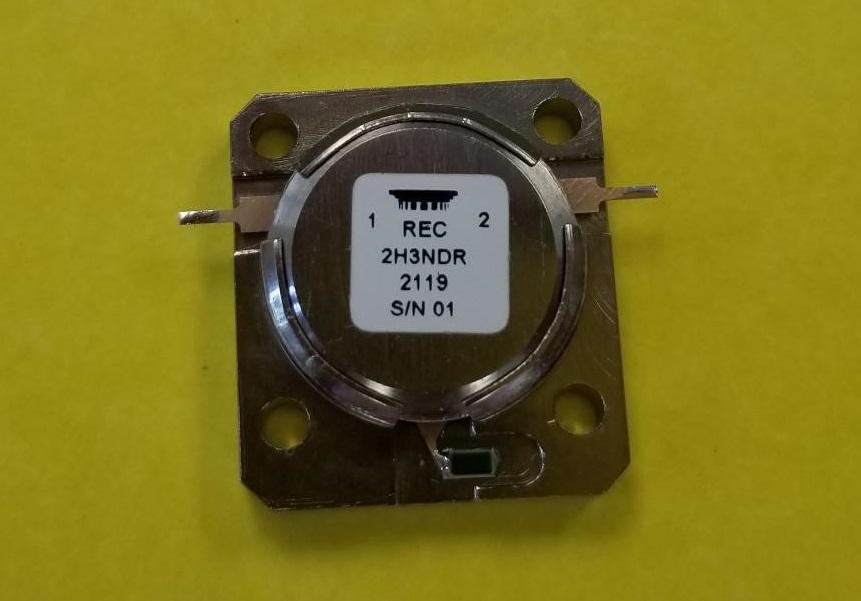

For Satcom and navigation applications, Renaissance offers this L-Band Drop-In Isolator. Operating at 1.477 – 1.489 GHz, this isolator offers equal FWD and REV power and a wide temperature range with high isolation and low insertion loss
|
|
|
|
|
35 GHz Dual Channel Receiver

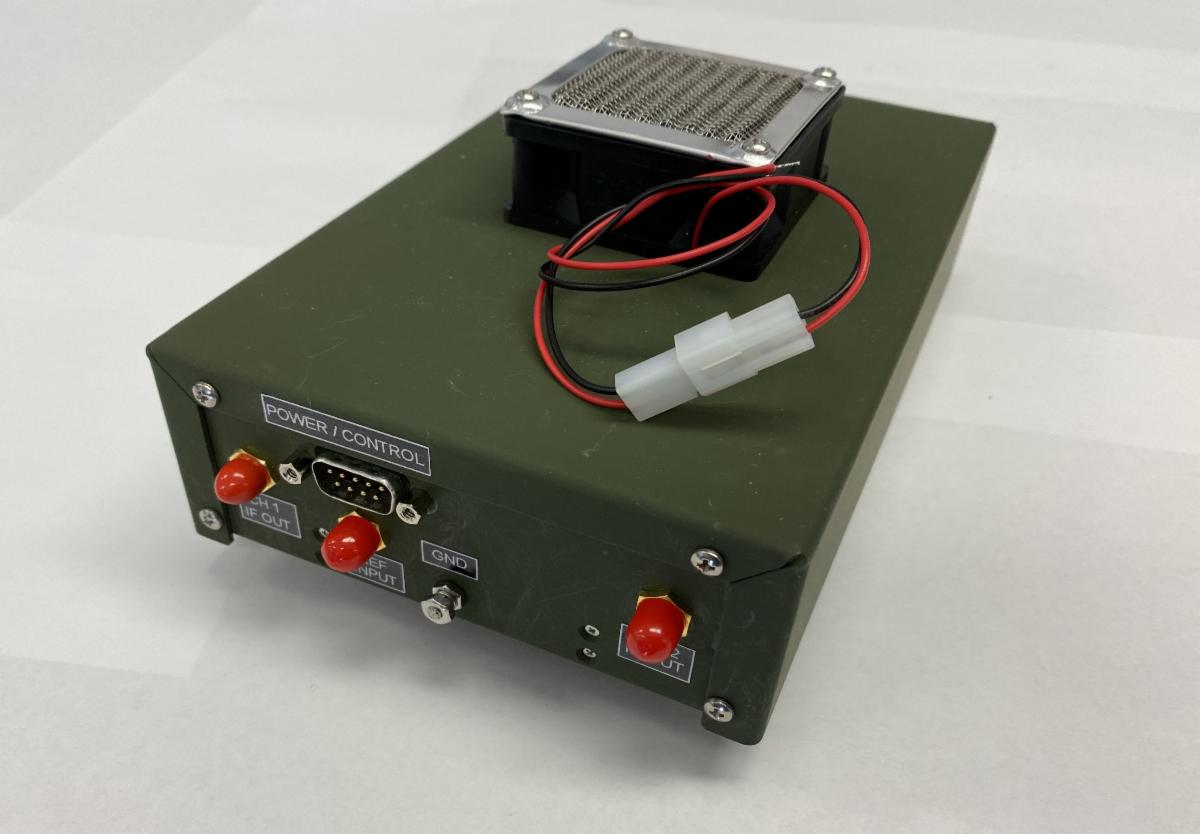

HXI’s HRX35.0-230 receiver is a compact 35 GHz dual channel receiver covering the frequency range of 33 to 37 GHz. The receiver downconverts the 33 to 37 GHz band to a 6 to 10 GHz IF output frequency range in each channel. Both channels exhibit 25 dB gain with a typical noise figure of 8 dB. An on-board phase-locked oscillator provides the local oscillator signal for both receiver channels. Voltage-variable attenuators are located at the input of each receiver channel for gain control via UART. The RF inputs and IF outputs are all coaxial. The receiver is housed in a 8” x 5” x 2” case with an externally mounted fan for cooling purposes.
|
|
|
|
35 GHz Dual Channel Transmitter
HXI’s HTX35.0-230 transmitter is a rack-mounted 35 GHz dual channel transmitter covering the frequency range of 33 to 37 GHz. The transmitter upconverts the 6 to 10 GHz IF input frequency range to the 33 to 37 GHz band and amplifies it to 10 watts output power in each channel. An on-board phase-locked oscillator provides the local oscillator signal for both transmitter channels. The oscillator is locked to an external 10 MHz reference oscillator (customer-supplied). Each transmitter channel has an auxiliary input sub-channel for pass-through of any signal within Ka-Band. The output interface to the user is WR-28 waveguide with UG-599/U flanges.
|
|
|
|
HXI's HMI and HMC series broadband ferrite junction isolators and circulators are available from 18 - 120 GHz. They utilize a low loss H-plane structure in a modified Y-junction format to provide minimum loss with maximum isolation and band- width. 2 GHz bandwidths with 20 dB of isolation are standard. Wider bandwidth, high power handling and magnetic shielding are available in select units.
|
|
|
|
|
|
|
|
|
