PMI推出系列新产品
|
|
|

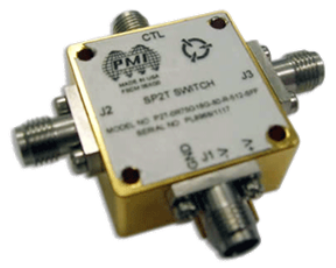

PMI Model No. P2T-0R75G18G-80-R-512-SFF, 0.75 to 18.0 GHz, SP2T Reflective Switch
· Operating Frequency: 0.75 to 18.0 GHz · Isolation of 80 dB · Insertion Loss of 3.0 dB · VSWR In/Out of 2.0:1 · Input Power of +30 dBm · RF Switching Speed of 25 ns · DC Voltage of +5 V, -12 V · SMA Female Connectors · Housing: 1.00" x 1.00" x 0.50"
PMI Website Link,
|
|
|

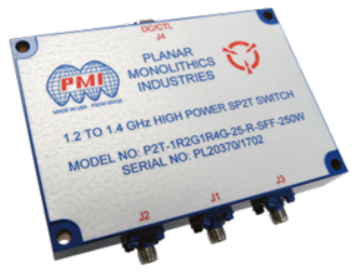

PMI Model No. P2T-1R2G1R4G-25-R-SFF-250W, 1.2 to 1.4 GHz, SP2T Reflective Switch
· Operating Frequency: 1.2 to 1.4 GHz · Power of 250 W · Insertion Loss of 0.8 dB · Isolation of 25 dB · VSWR of 1.5:1 · Rise Time of 275 ns · Duty Cycle of 10% · Pulse Width of 150 μs · PRF of 600 Hz · Switching Speed of 250 ns · Power Supply of +30 V @ 50 mA, +5 V @ 200 mA · SMA Female Connectors · Housing: 4.22" x 2.98" x 0.70"
PMI Website Link,
|
|
|
PMI Model No. P2T-2G18G-60-T-SFF-PM-I, DC to 18.0 GHz, SP1T Absorptive Switch
· Operating Frequency: 2.0 to 18.0 GHz · Input Power of +20 dBm · Input VSWR of 2.0:1 · Insertion Loss of 3.0 dB · Phase Matching of 5° · Isolation of 60 dB · Switching Speed of 100 ns · DC Voltage of +5 VDC @ 100 mA, -15 VDC @ 100 mA · SMA Female Connectors · Housing: 1.00" x 1.00" x 0.40"
PMI Website Link,
|
|
|

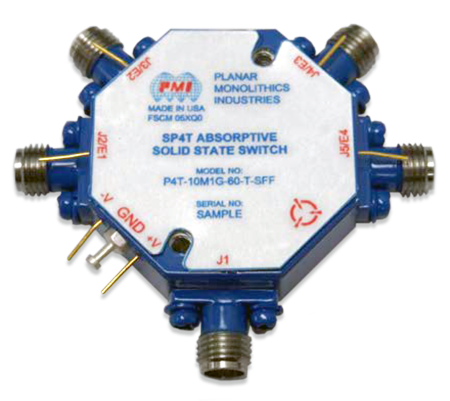

PMI Model No. P4T-10M1G-60-T-SFF, 10 MHz to 1.0 GHz, SP4T Absorptive Switch
· Operating Frequency: 10 MHz to 1.0 GHz · Input Power of +20 dBm · VSWR of 1.5:1 · Insertion Loss of 1.5 dB · Isolation of 60 dB · Switching Speed of 200 ns · DC Voltage of +5 VDC @ 200 mA, -15 VDC @ 100 mA · SMA Female Connectors · Housing: 1.25" x 1.25" x 0.40"
PMI Website Link,
|
|
|
PMI Model No. P4T-100M50G-100-R-RD, 0.1 to 50.0 GHz, SP4T Reflective Switch
· Operating Frequency: 0.1 to 50.0 GHz · Insertion Loss of 7 dB · VSWR In/Out of 2.2:1 · Isolation of 70 dB · Amplitude Balance of ±1.5 dB · Phase Balance of ±15° · Input Power of +20 dBm · Switching Speed of 50 ns · Video Transients of 1 V P-P · DC Voltage of +5 V @ 200 mA, -5 V @ 200 mA · 2.4 mm Female Connectors · Housing: 1.25" x 1.25" x 0.40"
PMI Website Link,
|
|
|

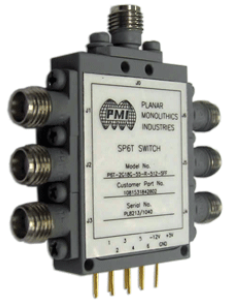

PMI Model No. P6T-2G18G-55-R-512-SFF, 2.0 to 18.0 GHz, SP6T Reflective Switch
· Operating Frequency: 2.0 to 18.0 GHz · Insertion Loss of 7 dB · Input Power of 10 dBm · RF Power Signal of 25 dBm · VSWR In/Out of 2.0:1 · Isolation of 55 dB · Switching Speed of 15 ns · Video Transients of 15 mV P-P · Video Transients Spectral Content of 65 dBm · DC Voltage of +5 VDC @ 200 mA, -12 VDC @ 60 mA · SMA Female Connectors · Housing: 1.00" x 1.40" x 0.30"
PMI Website Link,
|
|
|

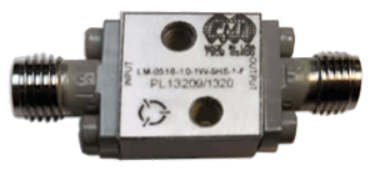

PMI Model No. LM-0518-10-1W-SHS-1-F, 0.5 to 18.0 GHz, Limiter
· Operating Frequency: 0.5 to 18.0 GHz · Insertion Loss of 1.5 dB · VSWR of 1.5:1 · Leakage of +10 dBm · Speed of 10 ns · Input Power of 1 W CW · Limiting Threshold of +10 dBm · SMA Female Connectors · Housing: 0.50" x 0.50" x 0.22"
PMI Website Link,
|
|
|
PMI Model No. LM-2G18G-18-20W-1KWP-SFF, 2.0 to 18.0 GHz, Limiter
· Operating Frequency: 2.0 to 18.0 GHz · RF Input Power of +43 dBm · Peak Input Power of +50 dBm 10%, 40 us · Limiting Threshold of +5 dBm · Flat and Spike RF Leakage of +18 dBm · Recovery Time of 100 ns · Insertion Loss @ -10 dBm Input Power of 2.6 dB · VSWR @ -10 dBm Input Power of 2.0:1 · SMA Female Connectors · Housing: 1.00" x 1.00" x 0.40"
PMI Website Link,
|
|
|

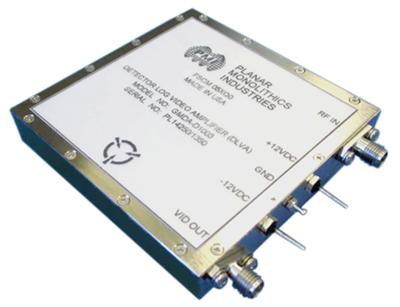

PMI Model No. GMDA-D1003, 7.0 to 18.0 GHz, DLVA
· Operating Frequency: 7.0 to 18.0 GHz · Logging Range of -70 to +5 dBm · TSS of -75 dBm · Logging Slope of +25 ± 1.0 mV/dB · Logging Linearity of ±1.0 dB · Flatness of 100 mV · RF Safe Input Power of +23 dBm · Max Output Voltage of +2.5 V · Input VSWR of 2.5:1 · Video Rise Time of 30 ns · Recovery Time of 1 us · Throughput Time of 30 ns · Video Bandwidth of 10 MHz · Offset Voltage of 50 mV · Power Supply of +12 VDC ± 5% @ 300 mA, -12 VDC ± 5% @ 150 mA · SMA Female Connectors · Housing: 3.00" x 2.90" x 0.50"
PMI Website Link,
|
|
|

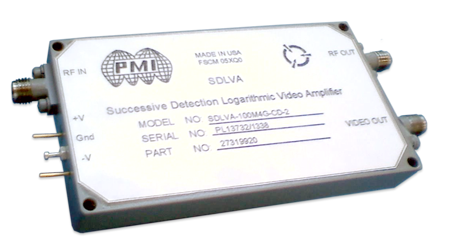

PMI Model No. SDLVA-100M4G-CD-2, 0.1 to 4.0 GHz, SDLVA
· Operating Frequency: 0.1 to 4.0 GHz · RF Gain of 55 dB · Video Flatness Over Frequency of ±50 mV · TSS of -73 dB · VSWR of 2.0:1 · PSAT of +13 dBm · Harmonics of 15 dBc · Power Input of +17 dBm · Log Slope of 25 mV/dB · Log Range of -70 to 0 dBm · Log Linearity of ±2.5 dB · DC Offset of 50 ± 50 mV · Pulse Range of 100 ns to CW · Rise Time of 30 ns · Recovery Time of 200 ns · Power Supply of +12 or +15 V @ 350 mA, -12 or -15 V @ 180 mA · SMA Female Connectors · Housing: 3.20" x 1.80" x 0.40"
PMI Website Link,
|
|
|

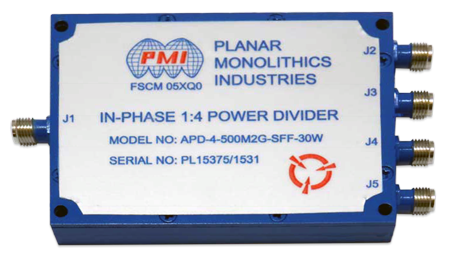

PMI Model No. APD-4-500M2G-SFF-30W, 0.5 to 2.0 GHz, 4-Way Power Divider
· Operating Frequency 0.5 to 2.0 GHz · Insertion Loss of 1.0 dB · VSWR In/Out of 1.3:1/1.2:1 · Isolation of 20 dB · Amplitude Balance of ±0.3 dB · Phase Balance of ±3° · Power Handling of 30 W Forward, 1 W Reversed · SMA Female Connectors · Housing: 2.99" x 2.21" x 0.39"
PMI Website Link,
|
|
|

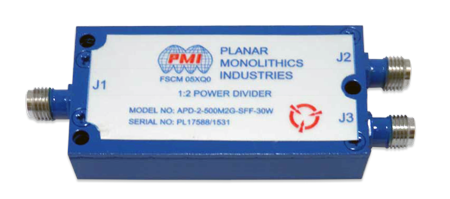

PMI Model No. APD-2-500M2G-SFF-30W, 0.5 to 2.0 GHz, 2-Way Power Divider
· Operating Frequency: 0.5 to 2.0 GHz · Insertion Loss of 0.5 dB · VSWR In/Out of 1.25:1/1.20:1 · Isolation of 20 dB · Amplitude Balance of ±0.2 dB · Phase Balance of ±2° · Power Handling of 30 W Forward, 1 W Reversed · SMA Female Connectors · Housing: 2.13" x 1.10" x 0.39"
PMI Website Link,
|
|
|

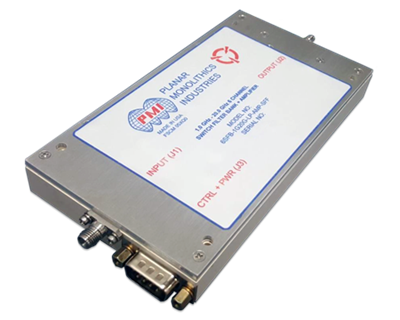

PMI Model No. 6SFB-1G20G-LP-AMP-SFF, 1.0 to 20.0 GHz, 6-Channel Switch Filter Bank
· Operating Frequency: 1.0 to 20.0 GHz · Gain of 25 dB · VSWR of 2.0:1 · Output 2nd Harmonic of 45 dBc @ 0 dBm Output Power · Switching Speed of 200 ns · Power Handling of +15 dBm · Output P1dB of +10 dBm · Power Supply of +15 VDC @ 800 mA, -15 VDC @ 100 mA · Housing: 5.50" x 3.00" x 0.75"
PMI Website Link,
|
|
|

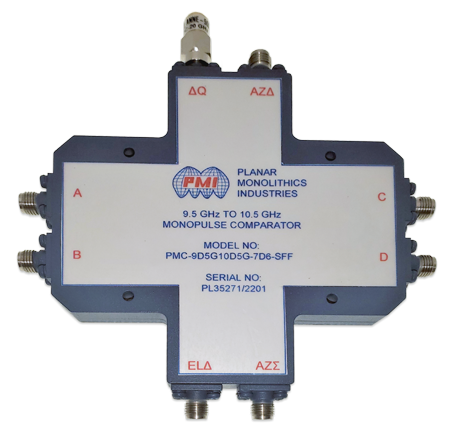

PMI Model No. PMC-9D5G10D5G-7D6-SFF, 9.5 to 10.5 GHz, Monopulse Comparator
· Operating Frequency: 9.5 to 10.5 GHz · Insertion Loss of 7.6 dB · Amplitude Balance of ±0.5 · Phase Balance of ±5° · Isolation of 20 dB · VSWR of 1.5:1 · Average Power Handling of 10 W · SMA Female Connectors · Housing: 3.48" x 3.48" x 0.43"
PMI Website Link,
|
|
|
PMI Model No. PDVAN-8018-60-8, 8.0 to 18.0 GHz, 8-Bit Programmable Attenuator
· Operating Frequency: 8.0 to 18.0 GHz · Mean Attenuation Range of 60 dB · LSB of 0.25 dB · Insertion Loss of 3.7 dB · VSWR of 2.0:1 · Power Rating of +20 dBm · Attenuation Flatness of ±1.5 dB · Switching Time of 500 ns · Power Supply of +12 to +15 V @ 150 mA, -12 to -15 V @ 75 mA · SMA Female Connectors · Housing: 2.00" x 1.80" x 0.50"
PMI Website Link,
|
|
|

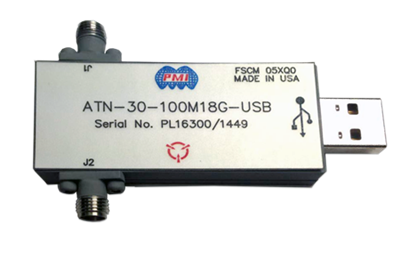

PMI Model No. ATN-30-100M18G-USB, 0.1 to 18.0 GHz, Attenuator
· Operating Frequency: 0.1 to 18.0 GHz · Attenuation Range of 30 dB · Insertion Loss of 5 dB · VSWR In/Out of 2.5:1 · Attenuation Accuracy of ±2.5 dB · Attenuation Step Size of 1 dB · DC Supply and Control of USB 2.0 · SMA Female Connectors · Housing: 2.25" x 1.00" x 0.33"
PMI Website Link,
|
|
|
PMI Model No. PDC-800M2D5G-20C-NFF-60W, 0.8 to 2.5 GHz, Directional Coupler
· Operating Frequency: 0.8 to 2.5 GHz · Insertion Loss of 0.4 dB · VSWR of 1.25:1 · Directivity of 20 dB · Coupling of 20 ± 1.0 dB · Frequency Sensitivity of ±0.7 dB · Average Power Handling of 60 W · N-Female Connectors · Housing: 3.94" x 1.10" x 0.87"
PMI Website Link,
|
|
|

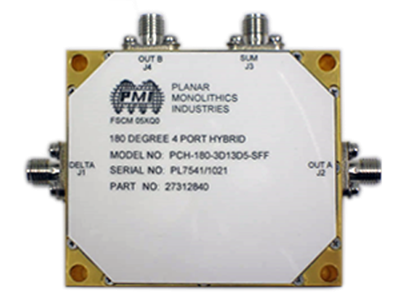

PMI Model No. PCH-180-3D13D5-SFF, 3.1 to 3.5 GHz, Hybrid Coupler
· Operating Frequency: 3.1 to 3.5 GHz · Insertion Loss of 0.4 dB · VSWR of 1.3:1 · Amplitude Balance of ±0.3 dB · Phase Balance of ±3° · Isolation of 20 dB · Input Power of 50 W · SMA Female Connectors · Housing: 2.362" x 2.048" x 0.670"
PMI Website Link,
|
|
