REC / HXI 推出系列新产品

Space Grade Screening



Renaissance Electronics designs and builds Circulators and Isolators to meet the demands of both Commercial and Defense satellite applications. All of these have been designed and tested to our unique customer requirements. This has expanded to include may other passive elements such as power dividers, filters, mixers etc.



As the market has transformed with the number of satellites increasing, REC has adapted to this market by recommending a standard screening process that will cover many, if not most of your requirements.

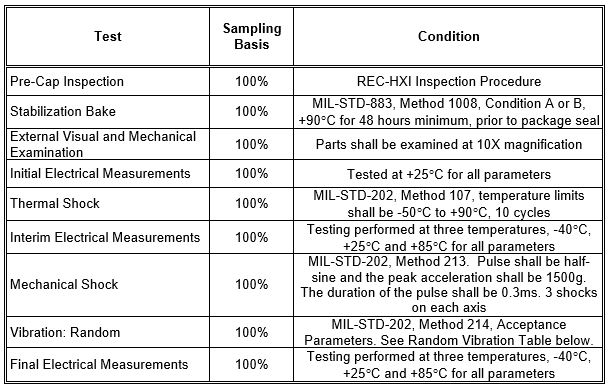

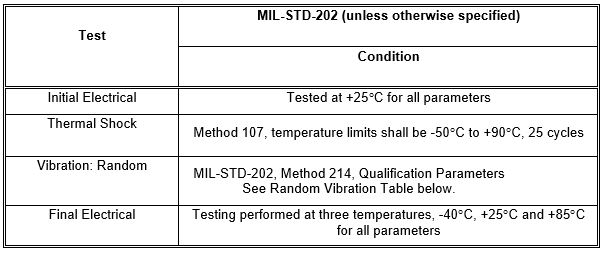

What is shown below is a common screening process often used at REC, including Acceptance, Qualification and Vibration Testing.



This can be adapted to your unique requirements as needed.







HXI offers an integrated X-Band Receiver Protector for Space Applications. The assembly includes a Waveguide Ferrite Circulator, waveguide-to-coax adapter and a SPST PIN Diode-Based Switch; the switch runs off a hermetic power supply/control module that utilize S-Level power conditioning IC’s. Insertion loss of the assembly is 4.5 dB and the isolation with the switch off is 90 dB. Power handling of the assembly is 700W CW.





HXI offers a 94 GHz Ferrite Circulator for Space Applications. The circulator has typical insertion loss of 0.5 dB and 21 dB isolation over the -55oC to +85oC temperature range. VSWR is 1.35:1.





For more information about Renaissance/HXI products contact us at 978-772-7774 or visit www.rec-usa.com / www.hxi.com
