PMI Model No. PEC-53-12-10-15-SFF is a 1.0 to 2.0 GHz Low Noise Amplifier which provides a minimum gain of 53 dB while maintaining a maximum gain flatness of ±0.75 dB. The noise figure is 3.5 dB maximum and offers a minimum OP1dB of +5 dBm. The unit is supplied with SMA female connectors.

  • Frequency Range: 1.0 to 2.0 GHz
  • Gain: 53 dB Min. - Measured 56 dB
  • Gain Flatness: ±0.75 dB Max. - Measured ±0.69 dB
  • Noise Figure: 3.5 dB Max. - Measured 0.8 dB
  • OP1dB: +5 dBm Min. - Measured +17.8 dBm
  • VSWR In/Out: 1.5:1 Max. - Measured 1.48:1/1.24:1
  • DC Current: 450 mA Max. - Measured 253 mA
  • DC Voltage: +12 to +15 VDC Nominal


2.0  PMI Model No. PE2-15-2R018R0-4R5-15-12-SFF, 2.0 to 18.0 GHz Low Noise Amplifier

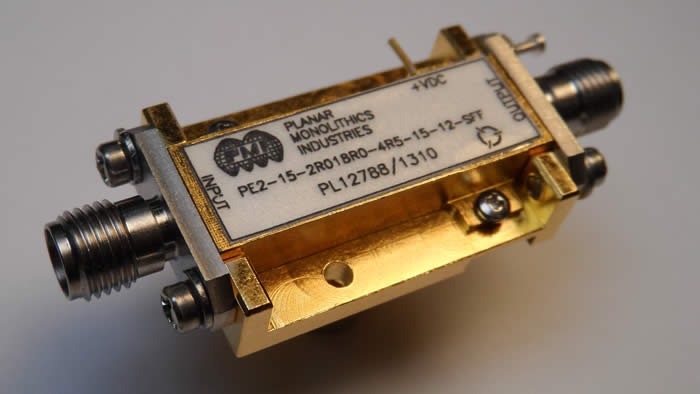

PMI Model No. PE2-15-2R018R0-4R5-15-12-SFF is a 2.0 to 18.0 GHz Low Noise Amplifier which provides 15 dB of gain while maintaining a gain flatness of ±1.25 dB maximum over the operating frequency.  The noise figure is 4.5 dB typical and offers a typical OP1dB of 15 dBm.  The amplifier requires +12 to +15 VDC and the current draw is 85 mA typical.  The unit is supplied with SMA female connectors in our standard PE2 housing.

  • Frequency Range: 2.0 to 18.0 GHz
  • Gain: 15 dB Typ. - Measured 14.65 dB Max., 13.53 dB Min.
  • Gain Flatness: ±1.25 dB Typ. - Measured ±0.56 dB
  • Noise Figure: 4.5 dB Typ. - Measured 3.8 dB
  • OP1dB: 15 dBm Typ. - Measured ≥+15 dBm
  • VSWR In/Out: 2.0:1 Typ. - Measured 1.60:1/1.48:1
  • DC Voltage Supply: +12 to +15 VDC
  • DC Current Draw: 85 mA Typ. - Measured 86 mA

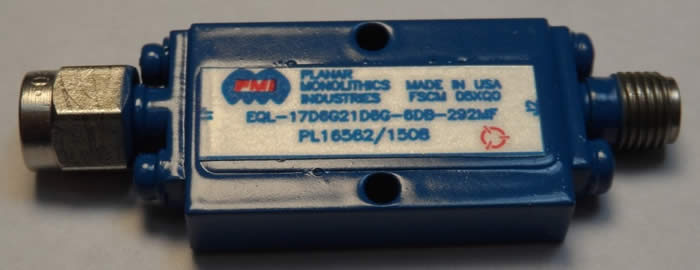

PMI Model No. EQL-17D6G21D6G-6DB-292MF is a passive amplitude equalizer that operates over the frequency range of 17.6 to 21.6 GHz.  This unit has a maximum input power of 0.5 watts CW and a maximum  VSWR of 2.0:1. The unit is supplied with 2.92 mm female and male connectors in a housing that measures 1.10" x 0.67" x 0.22".



  • Frequency Range: 17.6 to 21.6 GHz
  • Maximum Input Power: 0.5 W CW
  • VSWR: 2.0:1 Max. - Measured 1.54:1
  • Amplitude @ 17.6 GHz: -1 dB Min. - Measured -2.13 dB
  • Slope:
    • Amplitude @ 17.6 GHz
    • Amplitude -6 dB @ 21.6 GHz
    • Amplitude = -1.5 dB/GHz
    • (Frequency above 17.6 GHz in GHz) + (Amplitude @ 17.6 GHz) - Measured -1.56 dB/GHz
  • Linearity: ±0.5 dB



PMI Website Link,



PMI Model No. 8CL3D55G-300-CD-SFF is a band pass filter centered at 3550 MHz. This model has a passband insertion loss of 1.5 dB and a passband VSWR of 1.5:1. It is supplied with SMA female connectors in a housing that measures 4.60" x 0.75" x 0.60".

  • Center Frequency: 3550 MHz
  • Bandwidth: 300 MHz - Measured 300 MHz
  • Passband Insertion Loss: 1.5 dB - Measured 0.8 dB
  • Passband VSWR: 1.5:1 - Measured 1.25:1
  • Rejection:
    • -55 dBc @ 3.2 GHz - Measured 63.66 dB
    • -60 dBc @ 4.0 GHz - Measured 83.61 dB





PMI Model No. LM-26G40G-14-20W-292MM is a high power limiter capable of withstanding an input power level of 20 Watts, 440 to 670 ns Pulse Width, PRF 600 to 900 kHz, 40% Duty Cycle.  This model operates in the 26.5 GHz to 40 GHz frequency range.  The insertion loss is 4.0 dB maximum, VSWR of 2.0:1 and 250 ns response time and a typical leakage of +14 dBm.  This limiter is supplied with 2.92 mm connectors in a housing measuring 0.50" x 0.50" x 0.22".

  • Frequency Range: 26.5 to 40.0 GHz
  • Insertion Loss: 4.0 dB Max. - Measured 2.45 dB
  • Peak Input Power: 20 W, 440 to 670 ns Pulse Width, PRF 600 to 900 kHz, 40% Duty Cycle
  • Leakage Power: +14 dBm Typ.
  • 1 dB Recovery Time: 250 ns Max.
  • VSWR In/Out: 2.0:1 - Measured 1.43:1/1.54:1

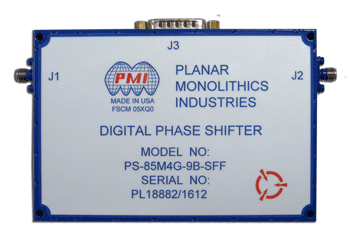

PMI Model No. PS-85M4G-9B-SFF is a 0.085 to 4.0 GHz, Digitally Controlled Analog Phase Shifter with capability for phase shifting from 0° to 360°.  The unit consists of an analog phase shifter and a digital to analog converter.  Nine logic input lines allow 512 discrete values of phase. This model has a maximum insertion loss of 13 dB and a maximum switching speed of 500 ns. It is supplied with SMA female connectors in a housing measuring 4.95" x 3.38" x 1.00".

  • Frequency Range: 0.085 to 4.0 GHz
  • Control: 9-Bit TTL
  • Insertion Loss: 13 dB Max. - Measured 10.1 dB
  • Phase Shift Range: 360° Typ.
  • Amplitude Error: ±1.0 dB Max. - Measured ±1.91 dB
  • Phase Shift Error: ±10° Max. - Measured +13.4°/-13.1°
  • Switching Speed: 500 ns Max. - Measured <300 ns
  • Power Supply:
    • +15 V @ 250 mA Typ. - Measured 265 mA
    • -15 V @ 20 mA Typ. - Measured 38 mA

PMI Website Link,

https://www.pmi-rf.com/products-details/ps-85m4g-9b-sff

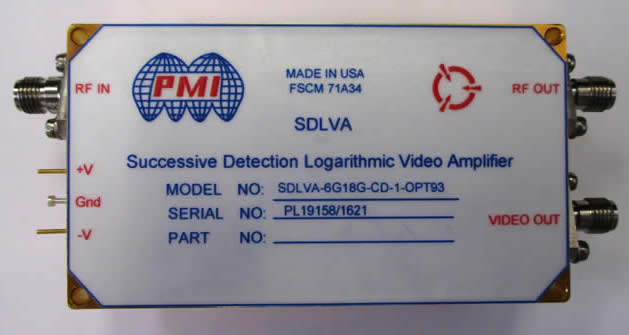

PMI model SDLVA-6G18G-CD-1-OPT93 Successive Detection Log Video Amplifiers (SDLVA) offers 75 dB Dynamic Range over the frequency range of 6.0 to 18.0 GHz. This model offers an ultra-fast rise time of 10 ns maximum and a recovery time of less than 60 ns. The unit is temperature compensated such that log linearity over temperature remains less than ±2.5 dB over the full operating temperature range of -40 to +85ºC. This model is supplied with SMA female connectors in a compact housing measuring only 3.2" x 1.8" x 0.4".  [Optional frequency ranges covering 100 MHz to 26.5 GHz are available.]

  • Frequency Range: 6.0 to 18.0 GHz
  • Frequency Flatness: ±2.0 dB Max. - Measured ±1.0 dB
  • TSS: -70 dB Min. - Measured -75 dB
  • VSWR: 2.0:1 - Measured 1.72:1
  • PSAT: +7 dBm
  • Power Input: +17 dBm CW Max.
  • RF Out: No Power
  • Log Slope:
  • 25 mV/dB (±10%) 93 Ohms - Measured 24.6 mV/dB
  • 48 mV/dB (±10%) No Load
  • Log Range: -70 to +5 dBm
  • Log Linearity: ±2.5 dB (-40ºC to +85ºC) - Measured +1.0 dB/-0.98 dB
  • Pulse Range: 30 ns to CW
  • Rise Time: 10 ns (5 ns Typ.) - Measured 4.7 ns
  • Recovery Time: 60 ns (40 ns Typ.) - Measured 41 ns
  • Power Supply:
  • +15 V or +12 V @ 350 mA Nominal - Measured 227 mA
  • -15 V or -12 V @ 180 mA Nominal - Measured 98 mA

PMI Website Link,

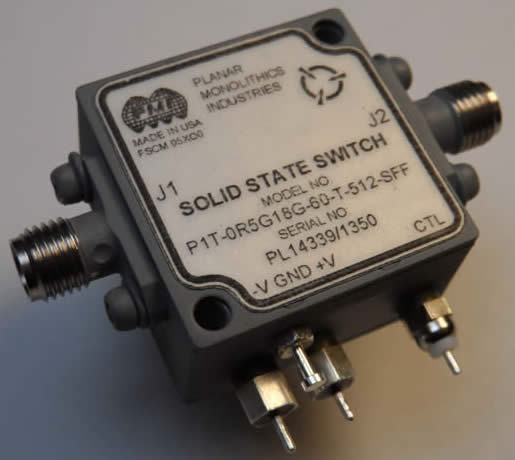

PMI Model No. P1T-0R5G18G-60-T-512-SFF is a solid-state, single pole, single throw absorptive switch that operates from 0.5 to 18.0 GHz.  This switch offers a maximum insertion loss of 3.5 dB and a minimum isolation of 60 dB.  It is supplied with SMA female connectors in a housing measuring 1.0" x 1.0" x 0.5".

  • Frequency Range: 0.5 to 18.0 GHz
  • Insertion Loss: 3.5 dB Max.
  • Isolation:
    • 60 dB (0.5 to 2.0 GHz) - Measured 102.06 dB
    • 70 dB (2.0 to 18.0 GHz) - Measured 89.45 dB
  • VSWR In/Out: 2.0:1 Max.
  • Switching Speed:
    • Rise/Fall: 10 ns Typ., 15 ns Max. - Measured 5 ns
    • Delay On/Off: 75 ns Typ., 100 ns Max. - Measured 25 ns
  • Input Power: +20 dBm CW
  • Survival Power: 1 W CW, 10 W Peak, 1 us
  • Control:
    • TTL Logic "0" = On
    • TTL Logic "1" = Off
  • Power Supply:
    • +5 V @ 70 mA Max. - Measured 15 mA
    • -12 V @ 100 mA Max. - Measured 7 mA





PMI Model No. P8T-0R120G-110-T-512-SFF is a single pole, eight throw, absorptive switch that operates over the frequency range of 0.1 to 20.0 GHz. This model provides a minimum of 110 dB of isolation and has a maximum insertion loss of 6 dB. The typical VSWR is 2.0:1 and the typical switching speed is 300 ns.  This switch is supplied with SMA female connectors in a housing that measures Ø1.500 Circle Point to Point x 0.700

  • Frequency Range: 0.1 to 20.0 GHz
  • Insertion Loss: 6 dB Max. - Measured 6 dB
  • Isolation: 110 dB Min. - Measured 110.25 dB
  • VSWR:
    • In/Out: 2.0:1 Max. - Measured 1.97:1
    • Out/Off: 2.0:1 Max. - Measured 1.97:1
  • Switching Speed (Rise/Fall): 500 ns Max., 300 ns Typ. - Measured 80 ns
  • RF Power: +30 dBm (1 W)
  • Control:
    • TTL Logic "0" = On
    • TTL Logic "1" = Off
  • Power Supply:
    • +5 V @ 500 mA Max. - Measured 423 mA
    • -12 V @ 100 mA Max. - Measured 79 mA
  • RF Phase Tracking: 0.2º per ºC (All ports with respect to common with temperature)

PMI Model No. TD-30T-SHS-218 is a high speed, TTL logic output threshold detector that operates from 2.0 to 18.0 GHz. This model has maximum input VSWR of 3.0:1 and a propagation delay of 15 ns. It is supplied with SMA female connectors in a housing measuring 2.2" x 1.5" x 0.4".

  • Frequency Range: 2.0 to 18.0 GHz (Usable down to 0.5 GHz)
  • VSWR Input: 3.0:1 Max. @ -20 dBm - Measured 2.90:1
  • Minimum Signal Level for Logic 1:
    • -20 dBm @ 2.0 GHz - Measured -21.3 dBm @ 2.0 GHz
    • -17 dBm @ 18.0 GHz - Measured -22.1 dBm @ 18.0 GHz
  • Threshold Variation over Frequency (Any 1.0 GHz Window): ±0.5 dB - Measured ±0.48 dB
  • Minimum Signal Level for Logic 0: -25 dBm - Measured -24.8 dBm
  • Dynamic Range: +10 dBm Max. - Measured +10 dBm
  • Propagation Delay (From 50% of an Input of -20 dBm): 15 ns Max.
  • Propagation Delay (From 50% of an Input of +10 dBm): 15 ns Max.
  • DC Power Supply:
    • +15 V @ 100 mA Max. - Measured +15 V @ 56.7 mA
    • -15 V @ 100 mA Max. - Measured -15 V @ 48.7 mA

PMI Website Link,
